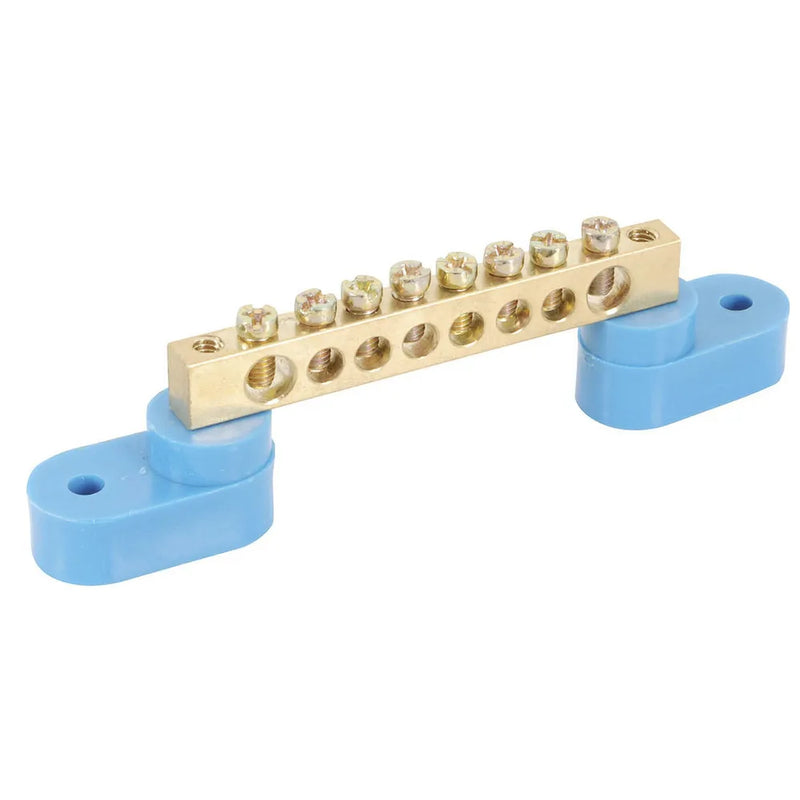

Machined Brass Busbar (8 way)

These are usually used to give an electrically common point for each wiring but are also useful for low voltage tie points, especially on boats or RV's, Caravans etc., 6 holes accept up to a 4.5mm wire bundle and the outer 2 a 6.0 bundle. The Busbar has insulated standoffs at each end, which can be removed so that the assembly can be screwed directly to a chassis. The standoffs have a conservative insulation rating of 1000V.

Features:
• All screws M4.0 Brass bar 9.0 x 6.0

Busbars, also known as Distribution Bars, are tailored for higher voltage configurations. Additionally, we offer nylon terminal strips suitable for a diverse range of applications at lower voltages. Explore them here.
