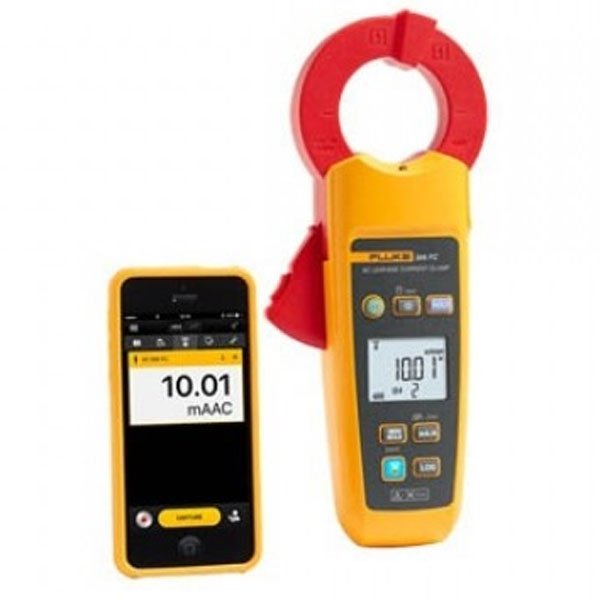

Fluke 369 FC Leakage Current Clamp Meter

Fluke 369 FC Leakage Current Clamp Meter


Reduce downtime – Find leakage currents without taking equipment offline.
The Fluke 369 FC true-rms leakage current clamp meter helps users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment off line.
The Fluke 369 FC has an oversize 61 mm jaw for work with extra-large conductors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference.
The 369 FC also offers wireless data connectivity via Fluke Connect. As part of Fluke Connect — the industry’s largest system of software and more than 40 wireless test tools — the 369 FC allows you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures
includes

Leakage Clamp Meter
Soft case
Safety Manual
Batteries: 2 AA

Features

The Fluke 369 FC true-rms leakage current clamp meter helps users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment off line.
The Fluke 369 FC has an oversize 61 mm jaw for work with extra-large conductors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference.
The 369 FC also offers wireless data connectivity via Fluke Connect. As part of Fluke Connect — the industry’s largest system of software and more than 40 wireless test tools — the 369 FC allows you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures.

Specifications

Electrical Specifications

Measurement function
Alternating current

AC ampere range
3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A

Range selection
mA / A: manual selection
3 mA / 30 mA / 300 mA: automatic selection
3 A / 30 A / 60 A: automatic selection

Range / Resolution
3 mA¹ / 0.001 mA

30 mA / 0.01 mA

300 mA / 0.1 mA

3 A / 0.001 A

30 A / 0.01 A

60 A / 0.1 A

Accuracy – filter activated (40 to 70 Hz), filter off (40 to 1 kHz)²
3 mA – 30 A
60 A
1% + 5 digits
2% + 5 digits

Frequency
40 Hz to 1 kHz

Crest Factor
3

After calibration accuracy is valid for one year. Accuracy is expressed as ± (% of reading + digits). Reference conditions 23 ±5 °C and a maximum relative humidity of 80%.
¹The minimum value is 10 ?A rms.
²Outside of the TC / °C 18 °C to 28 °C, 0.02 + 1

Physical

Display (LCD)
Digital readout: 3300 count

Display refresh rate
4 times / sec

Maximum conductor diameter
61 mm

Dimensions
257 x 116 x 46 mm

Weight
600 g

Battery
2 AA, IEC LR6, NEDA 15A, alkaline

Battery life
Expected battery life, without using backlight and spotlight, is more than 150 hours

Automatic shut-down
Meter automatically shuts down after 15 minutes of inactivity

Safety and Environmental Specifications

General safety
IEC 61010-1: Pollution Degree 2

Measurement safety
IEC 61010-2-032: CAT III 600 V / CAT IV 300 V

Operating temperature
-10 °C to +50 °C

Storage temperature
-40 °C to +60 °C

Operating humidity
Non-condensing (<10 °C)

90% relative humidity (10 °C to 30 °C)

75% relative humidity (30 °C to 40 °C)

45% relative humidity (40 °C to 50 °C)

Protection class
IEC 60529: IP30 (jaw closed)

Operating altitude
2000 m

Storage altitude
12000 m

Current sensor action category
IEC 61557-13: Class 1, ?100 A / m

Electromagnetic compatibility (EMC)

International

IEC 61326-1
Industrial Electromagnetic Environment

CISPR 11
Group 1 Class B

Group 1
Generated inside the equipment and / or use radio frequency energy associated with conducting the energy for the device's own internal functions is essential.

Class B
Equipment for home appliances and residential buildings directly connected to a low voltage power supply network equipment. When this device is connected to a test object, it may exceed the emission levels produced by CISPR 11 requirements.
Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment)

Class A
This product meets the requirements of industrial electromagnetic equipment, vendors or users should be aware of this. This device is intended for use in a commercial environment, instead of the home environment.
USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.

368/368 and 369/369 FC Data Sheet_6008008b_EN
