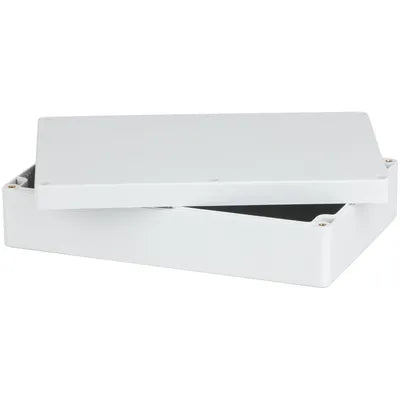

Sealed Polycarbonate Enclosure 222 x 146 x 55mm

Sealed Polycarbonate Enclosure 222 x 146 x 55mm

by Sydney Digital
SKU HB6220
$53.64 - $53.64
$53.64
$64.95
$64.95 - $64.95
$64.95
5 Year Warranty

Features:
• Made with Polycarbonate material and moulded in light grey.
• Operating temperature : minus 40C to 125C
• The lid and base incorporate a toungue and groove sealing system with a EPDM gasket
• Lid fixing screws are M-4 stainless steel (non metallic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture & dust
• Designed to IP65 of IEC 529and NEMA 4 (dust and hoseproof)
• Internal guide slots for mounting PCB assemblies vertically
• External mounting plate (4pcs) made of thermoplastic are available as an option
• External hinge kit (2pcs) made of thermoplastic are available as an option.


Product Dimensions

Width
 222mm
Height
 55mm
Depth
 146mm

Packaged Dimensions

Packaged Volume
 2.4696l
Packaged Weight
 0.43kg
Packaged Length
 24.5cm
Packaged Width
 16cm
Packaged Height
 6.3cm

Enclosures and Boxes

Material
 Polycarbonate
PCB Internal Guide Slots
Gasket sealing system
Lid Screws
 4pc

Product colour

Colour
 Light Grey

Ingress Protection Rating

IP Rating
 IP65
Dust/Particle Ingress Protection
 6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
 5 - Water jets

Product Availability

Availability
 Stocked item
Warranty: 60 Months
