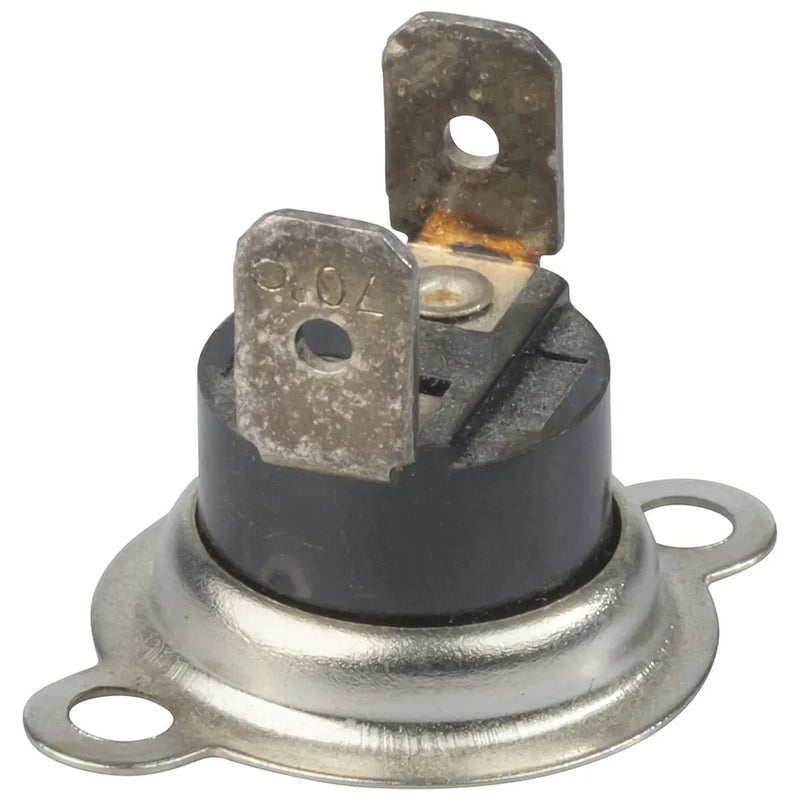

Normally Open 70°C Thermostat Switch

Normally Open 70°C Thermostat Switch

by Sydney Digital
SKU ST3833
$8.82 - $8.82
$8.82
$10.95
$10.95 - $10.95
$10.95

This phenolic-housed unit attaches to any metal surface which needs to be heat monitored. These thermostat switches have normally open contacts. They operate once the temperature reaches a specified limit and automatically reset to their original normally open state once the temperature drops below its rated temperature.

These are suitable for power amplifier applications and other temperature sensitive devices where a cooling fan needs to be integrated to cool the device down. Mounting holes are provided, ideal for attachment to a heatsink or any metallic surface.


Product Dimensions

Height
 21.2mm
Diameter
 30.3mm

Packaged Dimensions

Packaged Volume
 0.012l
Packaged Weight
 0.006kg
Packaged Length
 3cm
Packaged Width
 2cm
Packaged Height
 2cm

Thermal Switches and Fuses

Type of thermal switch or fuse
 Thermal circuit breaker
Thermal reset method
 Automatic
Thermal trip temperature
 70°C
Normally open or normally closed
 Normally open
operating tolerance
 +/- 5°C (32VDC), +/- 8°C (125VAC), +/-10°C (250VAC)
reset differential
 10°C - 50°C
contact endurance
 32VDC-100mA, 125VAC-10A, 250VAC-6A
operation cycles
 50000, 100000, 30000

Product Availability

Availability
 Stocked item
