Concord 4x2 4K HDMI Matrix Switcher Splitter

Concord 4x2 4K HDMI Matrix Switcher Splitter

by Sydney Digital
SKU AC5012
$385.95 - $385.95
$385.95
$463.95
$463.95 - $463.95
$463.95
1 Year Warranty

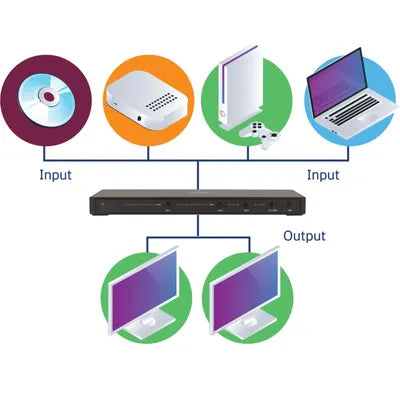

This device will add a level of convenience for households that have two TVs but don’t want to buy another set of Blu-ray players, set top boxes, etc. A single media player connected to the matrix would output its' content to two screens. This is also great for retail service-scapes, shopping centres, reception areas, and foyers.
Flexible control using the on-panel button or from the comfort of your couch using the supplied remote control. Output A supports audio extracting to optical and analogue 3.5mm outputs, and output B supports automatic 4K to 1080p downscale function if the source is 4K but your TV only supports up to 1080p.
Support for 3D signals, High Dynamic Range (HDR), audio up to 7.1 surround, and smart EDID management so switching sources will be fast with minimal interruption. Includes infrared remote control and mains power adaptor.
Features:
  • 4K to 1080p Downscaling
  • Up to 4K x 2K Video Resolution
  • High-Dynamic-Range (HDR) Video
  • TOSLINK Optical and 3.5mm Stereo Audio
  • EDID Data Transmission
  • HDCP, 3D and CEC Bypass

WARNING: KEEP OUT OF REACH OF CHILDREN.
Button Cell Batteries are Hazardous (new or used). Keep batteries away from children. These Batteries can cause severe or fatal injuries within 2 hours or less if swallowed or placed inside any part of the body. Medical attention should be sought if it is suspected a battery has been consumed or inserted; Call the 24-hour Poisons Information Centre in Australia on 131126 or New Zealand on 0800 764 766 or contact your country's emergency department.


A/V Switcher or Converter

Power Requirement
 External Power Required
Number of Outputs
 2pc
Switcher/Converter Type
 Remote Control Switcher
Output Type
 HDMI, Audio, Audio, Audio
Remote Control
 Infra-red (IR)
Output Connection
 TOSLINK, 3.5mm Stereo, HDMI Type-A, HDMI Type-A, HDMI Type-A
Input type
 HDMI
Number of inputs
 4pc

Power from Plugpack

DC Current Draw
 1A
DC Plugpack Voltage
 12V

Video Resolution

Supported Display Resolution
 4K UHD (3840 x 2160)
Resolution Frequency
 30Hz-60Hz
HDMI Version
 2.0b
HDR Version
 HDR 10
HDMI Maximum Data Rate
 18Gb/s-30Gb/s
HDMI Maximum Colour Depth
 8b
HDCP Version
 HDCP 2.2, HDCP 1.4

Audio Format

Digital Audio Format
 LPCM, DTS-HD Master Audio 5.1, Dolby Digital/Plus/Ex, Dolby TrueHD, DTS-HD Master Audio 5.1, Dolby Atmos, DTS-X

Product Dimensions

Width
 130mm
Height
 28mm
Weight
 363kg
Depth
 94mm

Button Cell information

Contains Button Cell

Packaged Dimensions

Packaged Volume
 4.64576l
Packaged Weight
 0.716kg
Packaged Length
 30.5cm
Packaged Width
 23.8cm
Packaged Height
 6.4cm
Warranty: 12 Months
