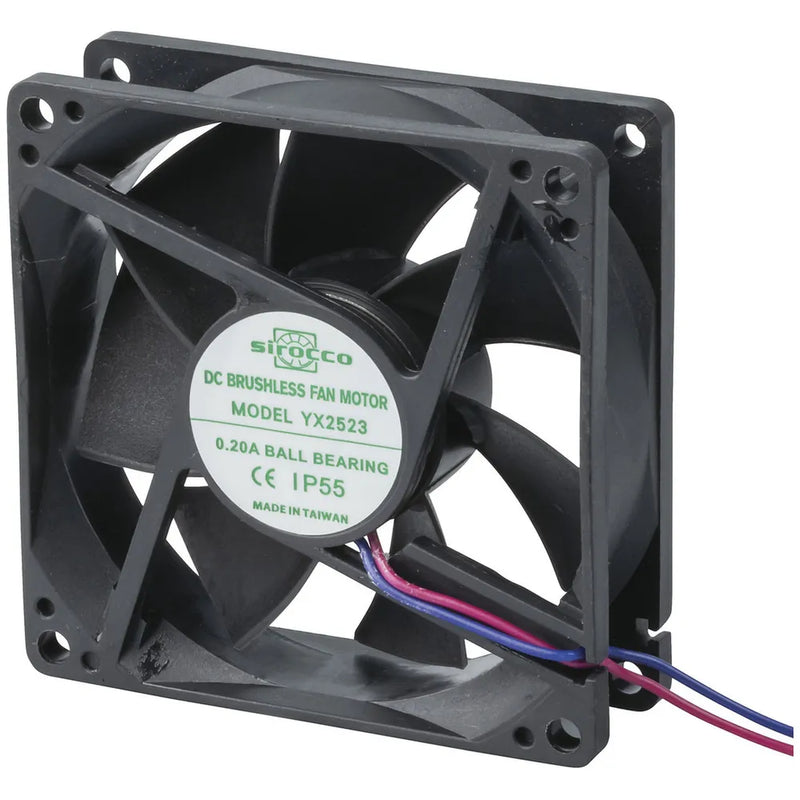

IP55 80mm 12V DC Ball Bearing Fan
SKU YX2523
Original price
$41.71
-
Original price
$41.71
Original price
$41.71
$50.95
$50.95
-
$50.95
Current price
$50.95
Features:
IP 55 rating on a fan which is extremely important, particularly when the fan is located in an environment where dust, fine dirt particles, soot etc can quickly clog up a standard fan and bring it to failure early in life.
Input: 3 watts
Ventilation Fans
| type of fan | Axial |
| Tachometer Output | |
| fan air volume cubic metres | 1.2m³/min |
| fan air volume cubic feet | 42ft³/min |
| fan RPM | 3100RPM |
| fan noise | 35dB |
| fan bearing type | Ball |
| fan housing material | Fibreglass Reinforced Plastic |
| fan impeller material | Fibreglass Reinforced Plastic |
| Fan Operational Life at 25°C | 100000hr |
| fan number of wires | 2pc |
| fan connector type | Flyleads |
Power from Plugpack
| DC Current Draw | 200mA |
| DC Plugpack Voltage | 12V |
Product Dimensions
| Length | 80mm |
| Width | 80mm |
| Depth | 25mm |
Packaged Dimensions
| Packaged Volume | 0.313168l |
| Packaged Weight | 0.092kg |
| Packaged Length | 9.2cm |
| Packaged Width | 9.2cm |
| Packaged Height | 3.7cm |
Product Availability
| Availability | Stocked item |
