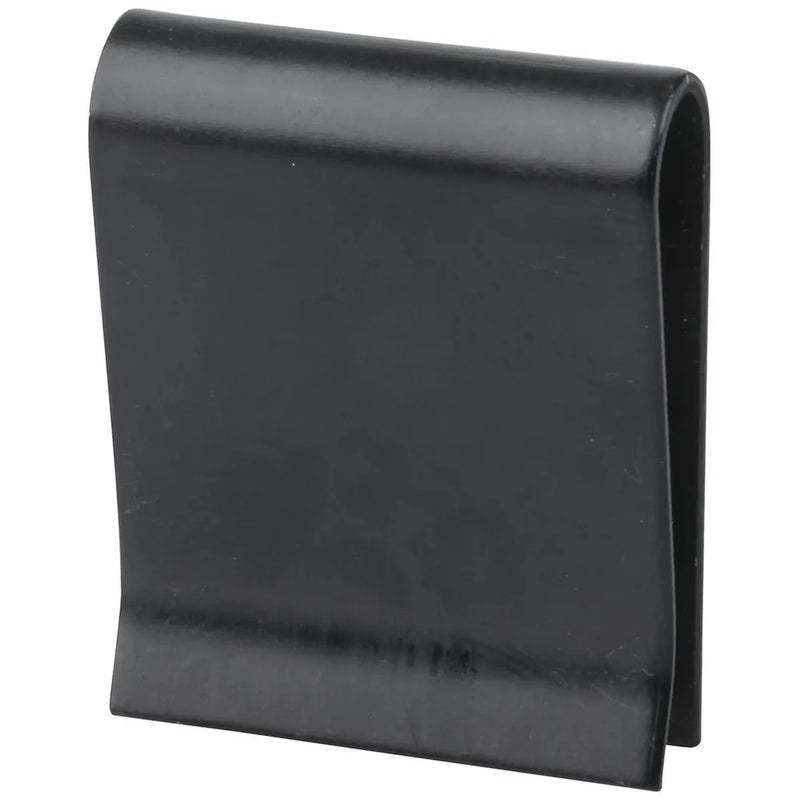

TO-220 Clip-on Heatsink (6043 Type)
SKU HH8503
Original price
$2.78
-
Original price
$2.78
Original price
$2.78
$3.95
$3.95
-
$3.95
Current price
$3.95
The heatsink will just clip over a device when required for permanent or temporary installation.
Heatsinks
| Heatsink Layout | Clip-on |
| Heatsink Thermal Resistance | 30°C/W |
| Specific Application | TO-220 |
| Heatsink Fins | 1pc |
| Heatsink Mounting Method | Snap-in |
| Component Mount Area Height | 6.8mm |
| Sink Area Width | 25.5mm |
Product Dimensions
| Length | 25.5mm |
| Width | 20.3mm |
| Height | 6.8mm |
Packaged Dimensions
| Packaged Volume | 0.0014l |
| Packaged Weight | 0.002kg |
| Packaged Length | 2cm |
| Packaged Width | 1.4cm |
| Packaged Height | 0.5cm |
Product Availability
| Availability | Stocked item |
