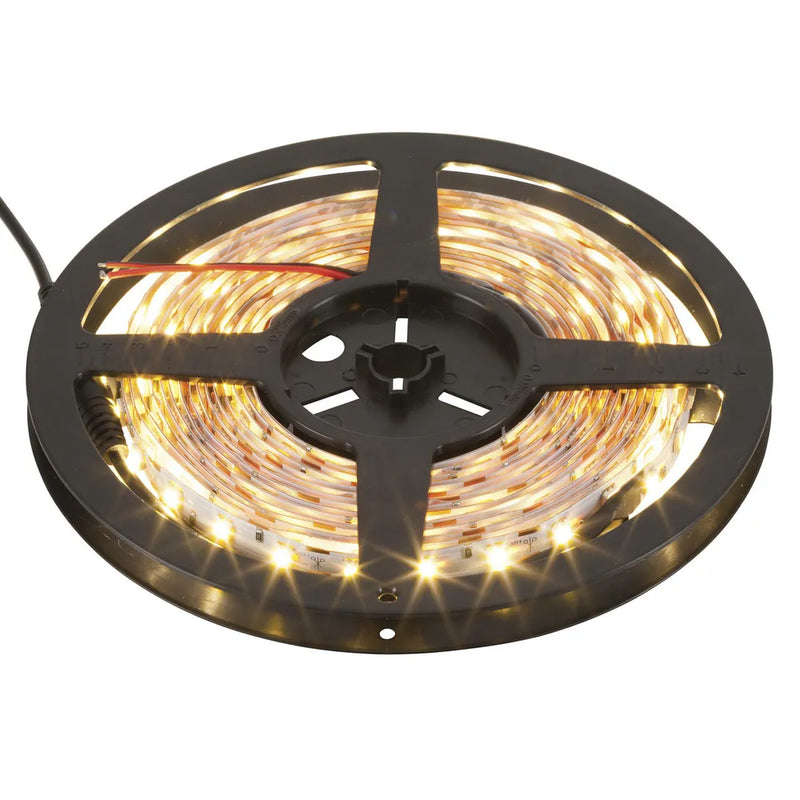

Low Cost 5m Flexible Adhesive LED Strip Light - Warm White
LED
When the absolute brightest light possible isn't what you are looking for, then these competitively priced flexible LED strips are an ideal option. These strips still use the same super efficient 5050 SMD LED package as our ultra bright LED strips, but each LED has around 20-40% less light output than our ultra bright versions. Everything else is the same; there are 60 LEDs per metre, the flexible strip can be cut into sections every third LED to create separate strips to your desired length, the strip is backed with 3M brand adhesive tape, and each section had solder pads to enable you to wire up to your desired configuration.
Sold as a full 5 metre reel, they are an excellent solution to thousands of lighting applications such as display cabinets, under bench lighting, accent lighting, caravan/camping, 4WD, mood lighting, etc
Features:
• Low 45mA current draw per 50mm segment
• High 970 lumens per metre
Our range of LED strip lights are made using some of the most common type of SMD LEDs used in LED lighting products; the 3528 type, and the 5050/5060type. Their model designations actually come from their footprint dimensions:3528 = 3.5x2.8mm, 5050 = 5.0x5.0mm, and 5060 = 5.0x6.0mm. The 3528 type is a single LED emitter type in a very compact package, whereas the 5050 and5060 type are commonly referred to as triple-chip due to having three LED emitters built into the one package. The 3528 typically offers superior lumen performance per emitter and greater light efficiency than 5050/5060, but the5060/5060 triple-chip types are more cost effective due to lower manufacturing and production costs when built into a finished product.
Lighting Details
| LED Type | 5050 SMD |
| LED Connection | SMD |
| LED replaceable | |
| LED Quantity | 300pc |
| Illuminated Colour | Warm white |
Light Output
| Lumens Rating | 4750lm |
Product Dimensions
| Length | 5m |
| Width | 10mm |
| Height | 4mm |
Packaged Dimensions
| Packaged Volume | 1.263735l |
| Packaged Weight | 0.154kg |
| Packaged Length | 20.7cm |
| Packaged Width | 16.5cm |
| Packaged Height | 3.7cm |
Product Mounting
| Mounting Method | Self Adhesive |
Power Source Details
| DC Voltage | 12V |
| DC Current Draw | 4.5A |
| Item connection | Flyleads, Barrel Plug |
| Connection Details | Supplied with pre-attached 2.1mm DC socket and matching plug flylead |
| Connection Size | 2.1mm |
Product Availability
| Availability | Stocked item |
