Fluke 287 FlukeView Forms Combo Kit

Fluke 287 FlukeView Forms Combo Kit


Now compatible with Fluke Connect Mobile App
Maximize productivity with the combined Fluke 287 and FlukeView forms combo kit. Designed for today’s professionals involved in R&D, maintenance, manufacture and design of electronic circuits or systems. With built-in data logger and TrendCapture™ (the meters on screen graphical display) capability, the 287 helps you track down elusive, intermittent problems or monitor equipment with any of its functions.
FlukeView Forms enables you to document, store, and analyze individual readings or series of measurements, overlay logged data to find cause and affect relationships, or turn your data into meaningful graphs and tables for a professional report. The 287 is compatible with the new Fluke ir3000 FC Infrared Connector, allowing you to share live measurements on your iOS or Android smart device with the Fluke Connect mobile app. The gives you a practical and affordable approach to documenting circuit design performance.
Features

NEW – Now compatible with Fluke Connect mobile app and all Fluke FC enabled test tools with optional ir3000 FC infrared connector (sold separately).
NEW – Let your team see what you see in an instant with ShareLive™ video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).
TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred.
Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
Selectable ac filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
Large 50,000 count, 1/4 VGA display with white backlight. Multiple sets of measurement information can be simultaneously displayed at the same time.
Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
On board help screens for measurement functions.
Saved measurements allow you to name and recall measurements made in the field.
Multi-lingual interface.
Multiple logging sessions possible without download.
0.025 % basic dc accuracy.
100 kHz ac bandwidth.
Real time clock for automatic time stamping of saved readings.
True-RMS ac voltage and current for accurate measurements on complex signals or non-linear loads. AC bandwidth specified to 100 kHz.
Measure up to 10 A (20 A for 30 seconds).
100 mF capacitance range.
Temperature function.
Relative mode to remove test lead resistance from low ohms or capacitance measurements.
Peak capture to record transients as fast as 250 ?s.
Premium test leads and alligator clips included.
Amp jack plugs included.
FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.
Limited lifetime warranty.

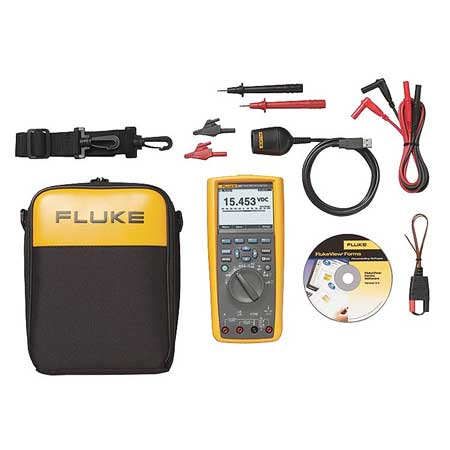

 Includes:

Fluke 287 True-RMS Electronics Logging Multimeter
FlukeView® Forms Software with cable
80BK-A Thermocouple Probe
TL224 Test Leads with model 175 modular probe tips
AC175 medium alligator clips
TL71 Probe caps
C280 Soft Case
Batteries – 6 AA Installed
CD User Manual

Requires Fluke ir3000 FC Infrared Connector for Fluke Connect communication (not included in FVF Kit)

Discover the Fluke 287 FlukeView Forms Combo Kit at Mektronics Australia – your trusted source for quality tools and equipment!

Function
Range and Resolution
Basic Accuracy

DC volts
50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
0.025 %

AC volts
0.4 % (True-RMS)

DC current
500.00 ?A, 5000.0 ?A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
0.05 %

AC current
0.6 % (True-RMS)

Temperature (excluding probe)
-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)
1.0 %

Resistance
500.00 ?, 5.0000 k?, 50.000 k?, 500.00 k?,5.0000 M?, 50.00 M?, 500.0 M?
0.05 %

Capacitance
1.000 nF,10.00 nF 100.0 nF, 1.000 ?F, 10.00 ?F, 100.0 ?F, 1000 ?F, 10.00 mF, 100 mF
1.0 %

Frequency
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
0.005 %

Connectivity
Optional infrared connector via Fluke ir3000 FC



Maximum voltage between any terminal and earth ground
1000 V

Battery type
6 AA alkaline batteries, NEDA 15A IECLR6

Battery life
100 hours minimum, 200 hours in logging mode

Temperature
Operating: -20 °C to 55 °C; Storage: -40 °C to 60 °C

Relative humidity
0 to 90 % (0 t 37 °C), 0 to 65 % (37 °C to 45 °C), 0 to 45 % (45 °C to 55 °C)

Electromagnetic compatibility
EMC EN61326-1

Vibration
Random vibration per MIL-PRF-28800F Class 2

Shock
1 meter drop per IEC/EN 61010-1 3rd Edition

Size (HxWxL)
22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)

Weight
870.9 g (28 oz)

Multiple on screen displays
Yes

True-RMS AC bandwidth
100 kHz

dBV/dBm
Yes

DC mV resolution
1 ?V

Megohm range
Up to 500 M?

Conductance
50.00 nS

Continuity beeper
Yes

Temperature (°C and °F)
-200 °C to 1350 °C

Battery/fuse access
Yes/Yes

Elapse time clock
Yes

Time of day clock
Yes

Min-max-avg
Yes

Frequency
Yes

Duty cycle/pulse width
Yes

Info button on board help
Yes

Hold
Yes

Isolated optical interface
Yes

Auto/touch hold
Yes

Reading memory
Yes

Log to PC
Yes

On board logging with TrendCapture
Yes

Logging memory
Up to 10,000 readings

Wireless connectivity (optional)
Yes

Warranty
Three years
