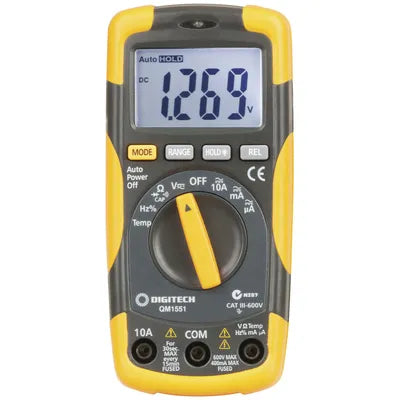

Cat III True RMS Autoranging 4000 Count DMM with Temperature
Original price
$136.67
-
Original price
$136.67
Original price
$136.67
$164.95
$164.95
-
$164.95
Current price
$164.95
| /
Batteries Included
A powerful true RMS multimeter that includes non-contact voltage testing, backlit LCD, and a carrying pouch. The rear of the unit has a foldout stand so you can sit the meter at a comfortable viewing angle on your desk, workbench or car.
Features:
• Backlit LCD
• Woven nylon carry pouch with room for meter and leads
• Leads and k-type thermocouple included
• Automatic (-) negative polarity indication
• Meter automatically shuts down after 30 minutes of inactivity
• Powered by 1 x 9V battery (included)
• Data hold
• Display: 4000 count
• Security Class: Cat III 600V
• Basic DVC accuracy: 0.5%
• Temperature: -20°C-760°C / -4°F-1400°F (±3%)
• Ave/RMS: True RMS
• Input impedance: - 7.8M
• Special features: Continuity, diode check, blue backlit LCD, non-contact voltage, foldout stand
Measures Current DC
DC Current Accuracy
| 1.50000000% |
DC Current Ranges
| 400µA, 4000µA, 40mA, 400mA, 10A |
Measures Current AC
AC Current Accuracy
| 1.80000000% |
AC Current Ranges
| 400µA, 4000A, 40mA, 400mA, 10A |
Measures Voltage AC
AC Voltage Accuracy
| 2% |
AC Voltage Ranges
| 400mV, 4V, 40V, 400V, 600V |
Measures Voltage DC
DC Voltage Accuracy
| 1.50000000% |
DC Voltage Ranges
| 400mV, 4V, 40V, 400V, 600V |
Measures Resistance
Resistance Accuracy
| 1.20000000% |
Resistance Ranges
| 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
Meter Safety Rating
Safety Rating Cat
| Cat III |
Safety Rating Max Volt
| 600V |
Measures Capacitance
Capacitance Ranges
| 40nF, 400nF, 4µF, 40µF, 100µF |
Capacitance Accuracy
| 3% |
Measures Frequency
Frequency Ranges
| 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 5Hz |
Frequency Accuracy
| 1.20000000% |
Measures Temperature
Measures in Celcius
| |
Measures in Fahrenheit
| |
Outdoor / Exterior Scale
| -20°C-760°C |
Celcius Accuracy
| 3% |
Digital Multi-Meter
Count Maximum Reading
| 4000 count |
Autorange
| |
True RMS
| |
Measures duty cycle
| |
Meter Data Control
Data Hold
| |
Relative Measure
| |
Measures Continuity
Continuity indicator
| Needle |
Meter Probes
Probe rating voltage
| 600V |
Probe safety rating
| Cat III |
Meter
Foldout Stand
| |
Casing
| Plastic |
Input Protection Fuse
| 400mA |
Meter Input Impedence
| 7.8MΩ |
Measures diode
| |
Power from disposable battery
Size / Shape
| 9V |
Battery quantity
| 1pc |
Compartment location
| Internal / In-built |
Batteries included
| |
Batteries can be replaced by user
| |
How is battery compartment kept closed
| Clip and Screw |
Product Dimensions
Length
| 138mm |
Width
| 68mm |
Depth
| 37mm |
Packaged Dimensions
Packaged Volume
| 3.24l |
Packaged Weight
| 0.45kg |
Packaged Length
| 22.5cm |
Packaged Width
| 16cm |
Packaged Height
| 9cm |
Meter Display
Display Type
| LCD |
Display Backlight
| |
Product Availability
Availability
| Stocked item |
Warranty: 9999 Months
Special terms or exclusions: Lifetime Warranty
