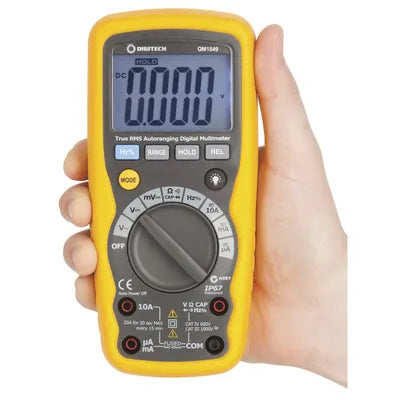

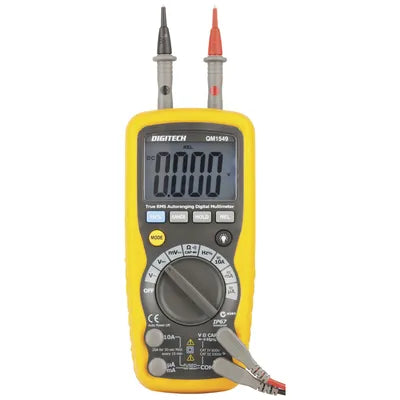

IP67 True RMS Autoranging Cat IV DMM

SKU QM1549
Original price $184.93 - Original price $184.93
Original price $184.93
$221.95
$221.95 - $221.95
Current price $221.95
Batteries Included

This is an excellent true RMS multimeter that features a large, easily read display and carries an IP67 environmental rating. This means the multimeter is waterproof and will not be damaged if accidentally dropped into water or left out in the rain. The meter has data should and relative measurement capabilities and is housed in a robust, double moulded case. Includes leads, soft carry case and user manual.

Features:

• IP67 waterproof
• True RMS
• Auto power-off
• Backlight
• Data hold & relative function
• Diode test
• Autoranging
• Audible continuity
• 10A current range
• Double moulded case
• Display 4000 count
• Security Class Cat IV 600V
• Basic DCV accuracy 0.500%
• Ave/RMS True RMS
• Input impedance 10M
• Special features IP67, data-hold, relative measurement, backlight

For More info on Digital Multimeters.

Measures Current DC


DC Current Accuracy
1.20000000%
DC Current Ranges
4mA, 40mA, 400mA, 10A

Measures Current AC


AC Current Accuracy
1.80000000%
AC Current Ranges
4mA, 40mA, 400mA, 10A

Measures Voltage AC


AC Voltage Accuracy
0.80000000%
AC Voltage Ranges
400mV, 4V, 40V, 400V, 1000V

Measures Voltage DC


DC Voltage Accuracy
0.50000000%
DC Voltage Ranges
400mV, 4V, 40V, 400V, 1000V

Measures Resistance


Resistance Accuracy
0.80000000%
Resistance Ranges
400Ω, 4kΩ, 40kΩ, 400kΩ, 40MΩ

Meter Safety Rating


Safety Rating Cat
Cat IV
Safety Rating Max Volt
600V

Measures Capacitance


Capacitance Ranges
4nF, 40nF, 4µF, 40µF, 100µF
Capacitance Accuracy
3%

Measures Frequency


Frequency Ranges
4kHz, 40kHz, 400kHz, 4MHz, 10MHz
Frequency Accuracy
1.50000000%

Ingress Protection Rating


IP Rating certificate
Dust/Particle Ingress Protection
6 - Dust tight, no ingress of dust
Liquid/Moisture Ingress Protection
7 - Immersion up to 1m

Digital Multi-Meter


Count Maximum Reading
4000 count
Autorange
True RMS
Measures duty cycle

Meter Data Control


Data Hold
Relative Measure

Measures Continuity


Continuity indicator
Needle

Meter Probes


Probe rating voltage
600V
Probe safety rating
Cat IV

Meter


Casing
Plastic
Carry Case Included
Input Protection Fuse
500mA, 10mA
Meter Input Impedence
10Ω
Measures diode

Power from disposable battery


Size / Shape
9V
Battery quantity
1pc
Compartment location
Internal / In-built
Batteries included
Batteries can be replaced by user
How is battery compartment kept closed
Clip and Screw

Product Dimensions


Depth
55mm
Length
182mm
Width
82mm

Packaged Dimensions


Packaged Volume
2.46048l
Packaged Weight
0.664kg
Packaged Length
23.3cm
Packaged Width
13.2cm
Packaged Height
8cm

Meter Display


Display Type
LCD
Display Backlight

Product Availability


Availability
Stocked item
Warranty: 9999 Months
Special terms or exclusions: Lifetime Warranty
