LED Voltmeter 5-15VDC with Bar Graph
SKU QP5589
Original price
$65.85
-
Original price
$65.85
Original price
$65.85
$79.95
$79.95
-
$79.95
Current price
$79.95

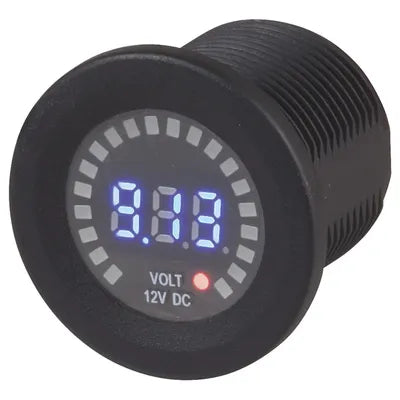

A quick and simple way to monitor the battery voltage in a vehicle, this voltmeter simultaneously shows the voltage numerically and on a bar graph. Simply wire up to a DC power source between 5-15VDC, and the blue LED voltmeter displays the voltage. The colour coded LED bar graph shows the voltage level on a scale from 11.3 to 13.2 volts, optimal for vehicle battery condition.
• Supplied with brackets for panel or surface mounting
• Connection is via 6.3mm spade terminals
• Also available with additional modules
Internal or Sub-part Dimensions
| Dimension details | Panel Mounting |
| Dimensions for | Including Bracket |
| Depth | |
| Diameter |
Product Dimensions
| Dimensions for | Including Bracket |
| Dimension details | Panel Mounting |
| Width | 60mm |
| Height | 42mm |
Additional Dimensions
| Dimension for | |
| Width | 60mm |
| Height | 42mm |
| Depth | |
| Dimensions details |
Measures Voltage DC
| DC Volts Measurement Range | 15V, 15V |
Product Mounting
| Mounting Method | Panel |
| Attachment / Securing Method | Collar / Nut |
Meter Display
| Digits Displayed | 3digit |
| Bargraph | |
| Display Type | LED |
| Display Backlight | Blue LED Backlit |
Product Availability
| Availability | Stocked item |
Packaged Dimensions
| Packaged Volume | 0.78732l |
| Packaged Weight | 0.088kg |
| Packaged Length | 18cm |
| Packaged Width | 8.1cm |
| Packaged Height | 5.4cm |
