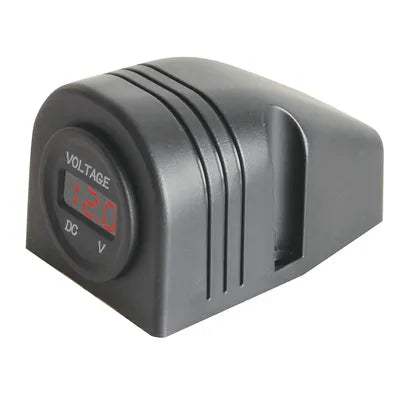

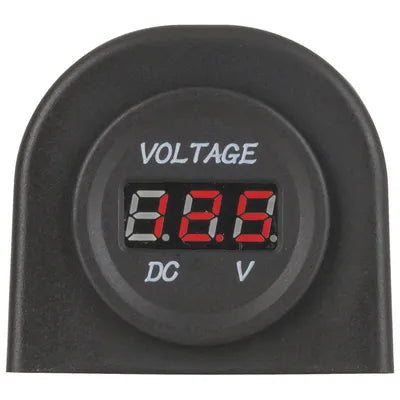

Panel/Surface Mount LED Voltmeter 5-30VDC

Panel/Surface Mount LED Voltmeter 5-30VDC

by Sydney Digital
SKU QP5582
$44.87 - $44.87
$44.87
$53.95
$53.95 - $53.95
$53.95

Quite possibly the easiest way to monitor your battery voltage, or the voltage in any DC powered system. Simply wire up to a positive and negative DC power source of 5-30VDC, and the voltmeter tells you the voltage (taking power from the DC source to operate).

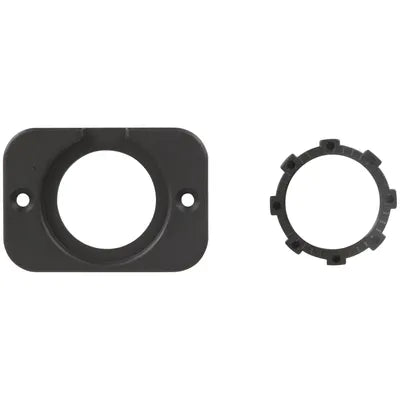

• Supplied with brackets for panel or surface mounting
• Connection is via 6.3mm spade terminals
• Also available with additional modules


Measures Voltage DC

DC Volts Measurement Range
 30V, 30V

Product Mounting

Mounting Method
 Panel
Attachment / Securing Method
 Collar / Nut
Square Mount Hole Width
 60mm
Square Mount Hole Height
 42mm

Product Dimensions

Width
 60mm
Height
 42mm
Dimensions for
 Including Bracket
Dimension details
 Panel Mounting

Internal or Sub-part Dimensions

Dimension details
 Panel Mounting
Dimensions for
 Including Bracket
Depth
Diameter

Additional Dimensions

Dimension for
Width
 60mm
Height
 42mm
Depth
Dimensions details

Packaged Dimensions

Packaged Volume
 0.7488l
Packaged Weight
 0.09kg
Packaged Length
 18cm
Packaged Width
 8cm
Packaged Height
 5.2cm

Meter Display

Bargraph
Display Type
 LED
Display Backlight
 Red LED Backlit
Display Height
 36mm
Display Width
 26mm

Product Availability

Availability
 Stocked item
