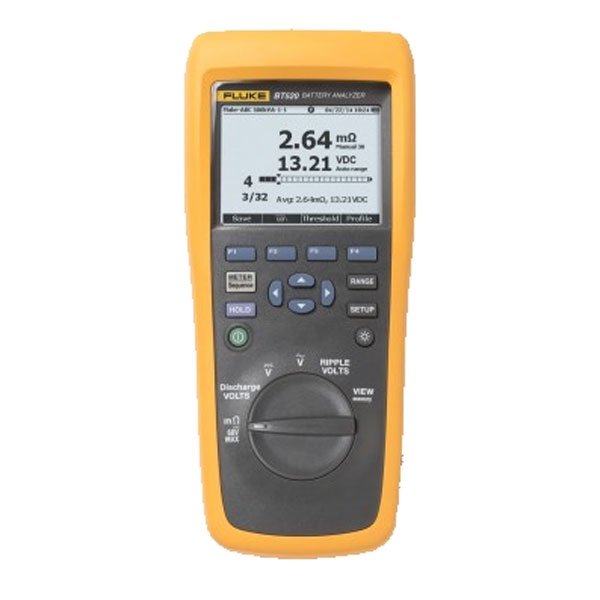

Fluke BT520 Battery Analyzer

Fluke BT520 Battery Analyzer


Reduced testing complexity, a simplified workflow and an intuitive user interface provide a new level of ease-of-use in battery testing.

The ideal test tool for maintenance, troubleshooting and performance testing of individual stationary batteries and battery banks used in critical battery back-up applications
The intuitive user interface, compact design and rugged construction ensure optimum performance, test results and reliability
Covers a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing using automated string function testing and the test probe integrated infra-red temperature measurement system
Designed for measurements on stationary batteries of all types.

Features : (Designed for measuring batteries in cabinets and hard to reach places)

All of the above plus
BTL20 Interactive Test Probe set, with long and short probe extenders and built-in LCD display and speaker for visual and audio feedback
Large soft carry case

Voltage and Resistance Thresholds
Fluke Battery Analyzers allow you to quickly and easily define upper and lower measurement thresholds or tolerance ranges. During the testing process, measured values are automatically compared to the predefined threshold levels producing a PASS, FAIL or WARN indication after each measurement. A maximum of 10 sets of thresholds can be stored and threshold indications are determined based on the following criterion:

Voltage
Resistance

> Voltage Lower
< Voltage Lower
< Reference
> Reference and
< Reference x
(1+Warning %)
Reference x (1+Fail)

Pass
Fail
Pass
Warning
Fail

 Management Software
Fluke Battery Management Software allows you to quickly and easily import data from the battery analyzer to a PC. The measurement data and battery profile information is stored and archived with the Management Software and can be used compare results, switch results between conductance and resistance readings and perform trend analysis. All measurement data, battery profile and analysis information can be used to easily generate reports.

Quick view saved readings
Profile management
Histogram of a battery string with end user defined threshold
Historical trend data of batteries
Multiple rounds of discharge voltage
Quick Report Generation
Upgrade Fluke Battery Analyzer firmware
Switch measurement results between conductance and resistance readings

Model Name

Discover the Fluke BT520 Battery Analyzer at Mektronics Australia – your trusted source for quality tools and equipment!

Fluke BT520

Includes:

Battery analyzer
4-wire test pin (set)
BTL10 Basic Test Lead (set)
TL175 TwistGuard™ Test Leads with adapter
L300 Attachable LED Flashlight (2)
BTL20 Intelligent Test Probe Set, with extender (no temperature sensor)
BP500 lithium-ion battery
BC500 AC charger
mini-USB cable
Shoulder strap
Belt strap
Magnetic hanging strap
FlukeView® Battery Management Software
Soft carrying case
Spare fuses (2)
Battery tags
