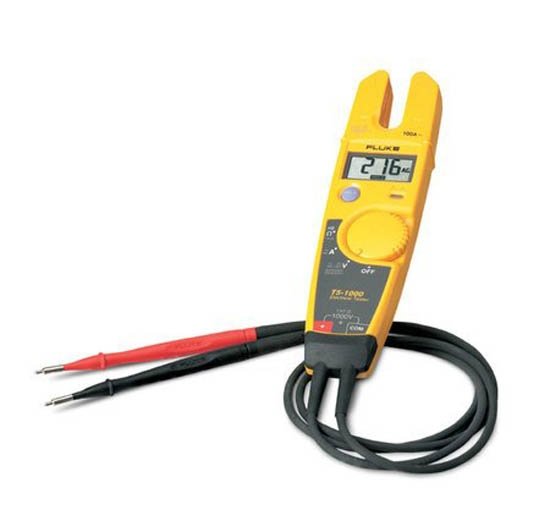

Fluke T5-1000 Voltage, Continuity and Current Tester

Fluke T5-1000 Voltage, Continuity and Current Tester
Fluke T5-1000 Voltage, Continuity and Current Tester Overview
T5-1000 Electrical tester helps you get a lot done, fast
The T5-1000 Voltage Continuity and Current Tester is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current with one compact tool. Just select volts, ohms, or current and the tester does the rest. Its OpenJaw™ current measurement lets you check current up to 100 A without breaking the circuit.
Detachable SlimReach™ test probes are customized for national electrical standards. Plus, its tough test leads accept optional accessories such as clips and specialty probes. The test leads stow neatly in the back of the tester, making it easy to carry in your tool pouch. Add the optional H5 holster and you can clip the T5-1000 onto your belt. For lower voltage applications check out the Fluke T5-600.
Other useful capabilities:

Features a compact design with handy probe storage
Withstands a 10 ft. (3 m) drop
Includes detachable SlimReach™ probe tips that are customized for national electrical standards
Can stay connected much longer than solenoid type testers
Offers Auto-off mode to conserve battery life
Fits into an optional holster that attaches to a belt and neatly stows test leads

Fluke T5-1000 Voltage, Continuity and Current Tester Features

Reliable electrical tester automatically measures volts AC and volts DC with precise digital resolution
Includes easy, accurate OpenJaw™ current measurement
Displays resistance to 1000 ?
Includes a continuity beeper for quick go/no-go tests
All inputs are protected to EN61010-1 CAT III 1000 V CAT IV 600 V. UL, CSA

Fluke T5-1000 Voltage, Continuity and Current Tester Includes

4 mm detachable probes
Instruction sheet

Fluke T5-1000 Voltage, Continuity and Current Tester Specifications

Specifications

Continuity Beeper
Threshold
On at < 25 ?, off at > 400 ?

Volts Indicator LED
Threshold
Guaranteed on by 30 V AC

Environmental Specifications

Operating Temperature
-10°C to 50°C

Storage Temperature
-30°C to 60°C

Humidity (Without Condensation)
0% to 95% (5°C to 30°C)

0% to 75% (30°C to 40°C)

0% to 45% (40°C to 50°C)

Dust/Water Resistance
Yes

Operating Altitude
2000 m max

Temperature Coefficient
0.1 x (specified accuracy)/°C (< 18°C or > 28°C)

Safety Specifications

Measurement Category
IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac

Agency Approvals
CSA, TUV

Maximum Voltage
1000 V between any terminal and earth ground

Mechanical and General Specifications

Size
30.5 x 51 x 203 mm

Weight
300 g

Warranty
2 years

Battery Life
200 hour zinc chloride, 400 hour alkaline

Battery Type
Two AA zinc chloride

Low Battery Indicator
Yes

Current sensor opening
12.9 mm

Calibration cycle
1 year

Test leads
Type
Heavy duty, flexible leads rated for 1000 V use.

Field replaceable leads terminate in male shrouded banana plugs

Probes
Two tips – one red, one black

Detachable Slim-Reach Test probe tips in one

Styles
TP1 Slim Reach Test Probes
