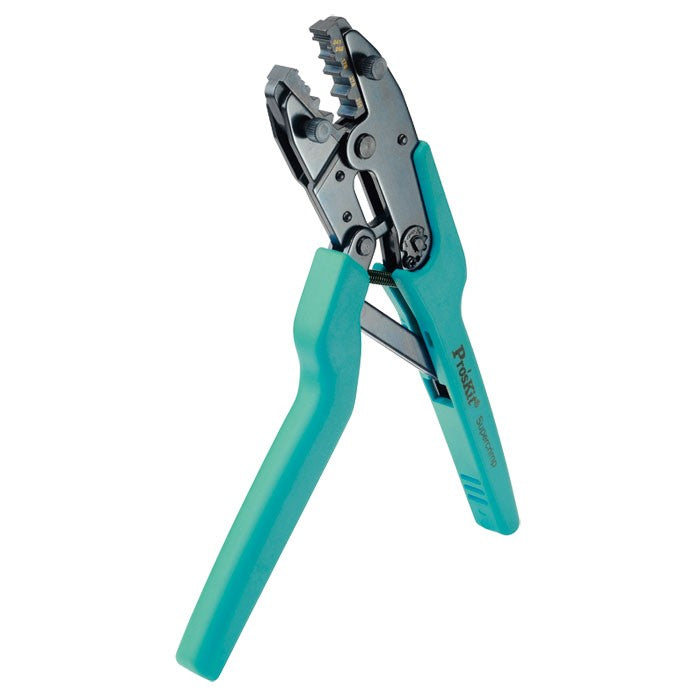

Ergo-Lunar Crimp Frame Only (260mm)

Features

‧ 40-50% lower crimp force
‧ Decreases work-related injuries.
‧ Increases productivity.
‧ Superior mechanical gain.
‧ Interchangeable die sets for wide range of applications.


Material	Handle	OAL. (mm)	Individual Packing
S45C	PP	260	Blister Card

Follow models are available:

	Complete set with die	Replacement die Set	Description & application	Following  modelsare available
	1PK-3003F		Supercrimp crimp tool frame (Frame  only without die)
	1PK-3003FD1	1PK-3003D1	22-10 AWG	insulated  terminals /color coded nests
	1PK-3003FD2	1PK-3003D2	22-10 AWG	Non insulated  Open Barrel  Connectors,  Commercial Type
	1PK-3003FD3	1PK-3003D3	Hex. 0.305,0.068, 0.228	Cambridge  CP-88, CP-89 BNC /TNC coax connectors with RG-58, RG-59/62  AU cables
	1PK-3003FD6	1PK-3003D6	Hex, 0.429,0.100, 0.080	N-Series and  RG-8/11  Connectors
	1PK-3003FD8	1PK-3003D8	Hex 0.324,0.178, 0.068	RG-174, Belden- Type RG-8281  cables
	1PK-3003FD9	1PK-3003D9	Hex 0.213,0.190, 0.068,0.042	Plenum and  Teflon Cables  RG-58 and 59
	1PK-3003FD10	1PK-3003D10	Hex 0.350,0.320, 0.255	RG-59, RG-6,  RG-8281, F-type CATV Connectors
	1PK-3003FD11	1PK-3003D11	RJ-45, eight- position keyed  or non-keyed  modular plugs (excluding AMP)
	1PK-3003FD12	1PK-3003D12	RJ-11 two,  four and  six-position  modular plugs
	1PK-3003FD14	1PK-3003D14	AMP RJ-45 eight- position modular plugs/Primary strain relief crimp bar is located further back on die/modular plugs.	RG-58, RG-59/ 62, BNC/TNC  Coax connectors
	1PK-3003FD16	1PK-3003D16	RJ-22 two and  four-position  handset  modular plugs
	1PK-3003FD21	1PK-3003D21	16-26AWG	Usable for miniature insulated rings & splices
	1PK-3003FD34	1PK-3003D34	SQ .042”, HEX .068”,.178”, .197”, .255”SQ 1.07 mm HEX 1.73, 4.52, 5.00, 6.48 mm	HDTV SMA true 75-ohm BNC/TNC & mini UHF RG174, RG59/62, mini coaxial & Belden 1855A
