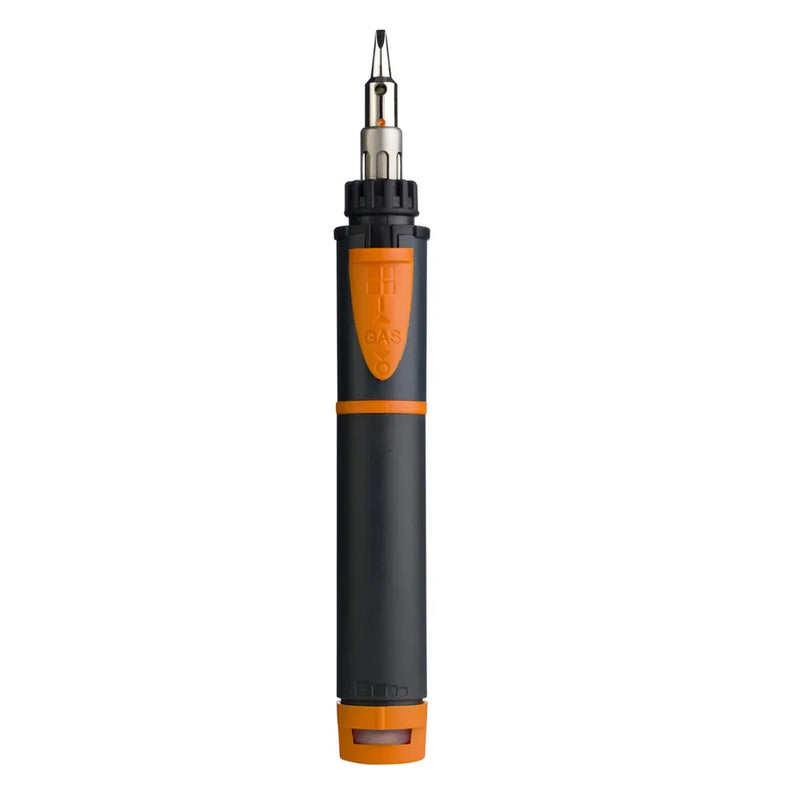

Pro Piezo Gas Soldering Iron
Gas Can Compatible
The Portasol Pro Piezo is a powerful gas soldering iron, featuring an adjustable temperature control allowing soldering tip temperatures up to 580°C. With equivalent electrical power of between 15 and 75 Watts, there is little that's not possible with this beauty. It incorporates a viewing window at the end of the gas tank, to keep an eye on the fuel level. The fuel tank fills in around 20 seconds, and will provide approximately 45 minutes of run time. Ignition is via the built in Piezo crystal mechanism, and the end cap provides safety gas shut off when replaced. The Portasol Pro Piezo is a dream to use, and will not let you down. Supplied with a 2.4mm double flat tip.
Spare Tips Available:
1.0mm Chisel TS-1311
2.4mm Chisel TS-1312
4.8mm Chisel TS-1313
Hot Air Blow TS-1314
Hot Knife TS-1315
Flame TS-1316
For More info on Soldering Irons.
A leading brand recognized worldwide. Portasol® products are designed and manufactured in Ireland, to the highest quality standards. Since commencing operation in 1983, they have forged their way into the market with some of the most rugged & reliable gas powered soldering & heating tools in the world. They utilize catalytic combustion (flame tips excluded), which converts the gas flame into infrared radiation. It Is a safe, flameless way of heating the tips evenly and continuously. They all use standard butane gas, and have a variety of tips available to support a wide range of applications.
Gas Iron
| Ignition | Piezo Spark |
| Tip Cover Included | |
| Safety Lock for Storage |
Soldering Iron
| Spare Tips Available | |
| Temperature Regulated | |
| Soldering iron type | Gas Soldering Iron |
| Soldering Power Rating | 75W |
| Temperature | 580°C |
Soldering Iron Tip
| Type | Chisel, Flame, Blower |
| Size | 2.4mm |
Fuel Powered
| Fuel type | Butane |
| Burn time | 45min |
| Refill time | 20sec |
Product Dimensions
| Weight | 75g |
| Length | 178mm |
| Diameter | 22mm |
Packaged Dimensions
| Packaged Volume | 0.9048l |
| Packaged Weight | 0.128kg |
| Packaged Length | 29cm |
| Packaged Width | 13cm |
| Packaged Height | 2.4cm |
Product Availability
| Availability | Stocked item |
