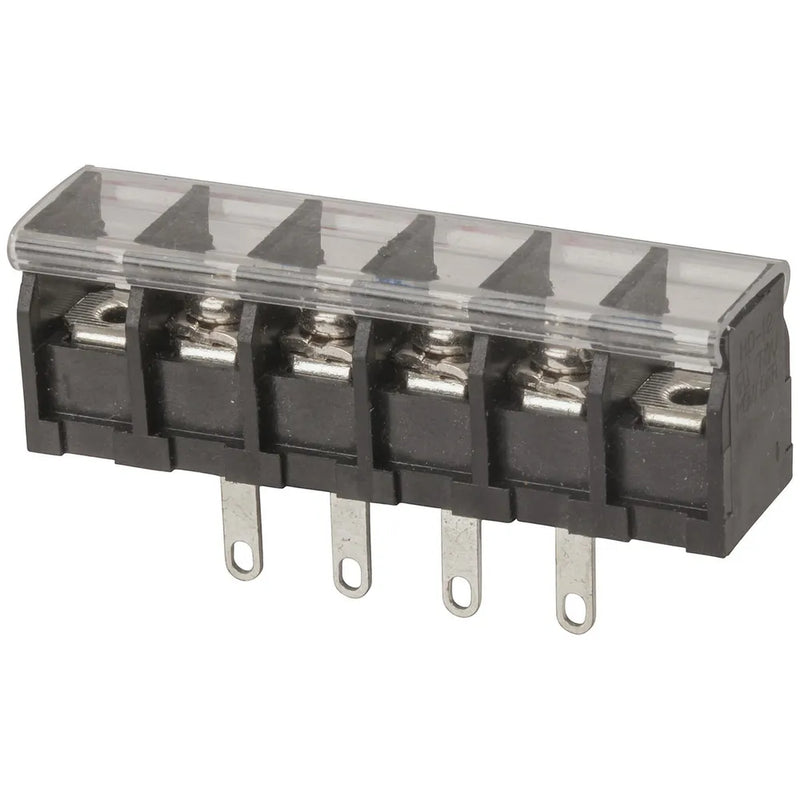

Terminal Barrier Panel with Clear Cover 4 Way
SKU HM3166
Original price
$8.02
-
Original price
$8.02
Original price
$8.02
$9.95
$9.95
-
$9.95
Current price
$9.95
Barrier Material: Thermoplastic (UL=94V-0), Black
Terminals: Tint Plated Brass (Standard)
Screws: Nickel Plated Steel
Wire Range AWG: 12-22 STR
Cover Material: PC
Insulation withstands voltage AC 2000V/Min
Pole HD-12-? P HD-12-? PH
A (Px9.5)+1.4 (P+2)*9.5+1.4
B (P-1)*9.5 (P+1)*9.5
Terminals: Tint Plated Brass (Standard)
Screws: Nickel Plated Steel
Wire Range AWG: 12-22 STR
Cover Material: PC
Insulation withstands voltage AC 2000V/Min
Pole HD-12-? P HD-12-? PH
A (Px9.5)+1.4 (P+2)*9.5+1.4
B (P-1)*9.5 (P+1)*9.5
Terminal Strip
| Terminal Spacing | 9.5mm |
| Type | Screw Terminal |
| Device | Terminal |
| Attachment Method | Solder Tag |
| Insulation Dielectric Voltage Rating | 2V |
| Number of Contacts | 4pc |
| Insulation Resistance | 500MΩ |
AC Current Rating
| AC current rating | 25A |
Product Mounting
| Mounting Method | Panel |
Packaged Dimensions
| Packaged Volume | 0.0261l |
| Packaged Weight | 0.018kg |
| Packaged Length | 5.8cm |
| Packaged Width | 1.5cm |
| Packaged Height | 3cm |
