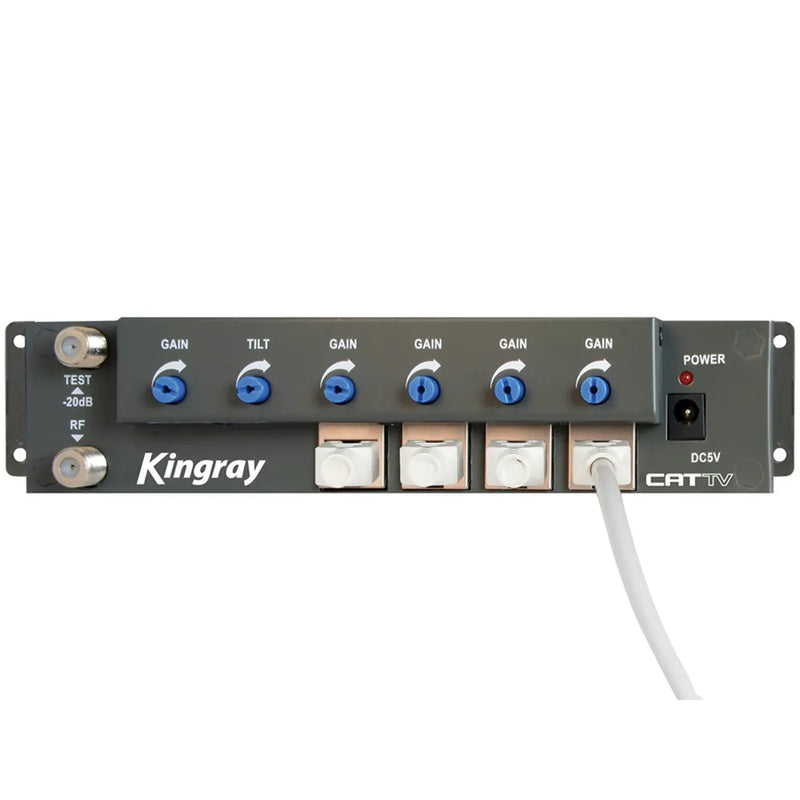

RF over CAT5 Amplifier

At the heart of the Kingray CATTV™ system is the CAT01 high output distribution amplifier – capable of supplying quality signal to up to four televison receivers. The CAT01 ampliferr incorporates master gain and tilt controls, plus individual gain controls for each outlet, delivering a balanced output level regardless of cable lengths.

• High Output

• 35dB maximum gain

• -20dB test point

• Wide bandwidth

Specifications:

Minimum Input Level: 63dBµV
Tilt Control: 0-15dB
Input Gain Control: 0-20dB
Noise Figure: -8dB
Return Loss: -13dB
Isolation: -20dB (port to port)
Test Point: -20dB
Current Draw: 800mA at 5VDC
