10A Panel Mount Thermal Circuit Breaker (CBE)

10A Panel Mount Thermal Circuit Breaker (CBE)

by Jaycar
SKU SF2300
$19.75 - $19.75
$19.75
$19.75 - $19.75
$19.75

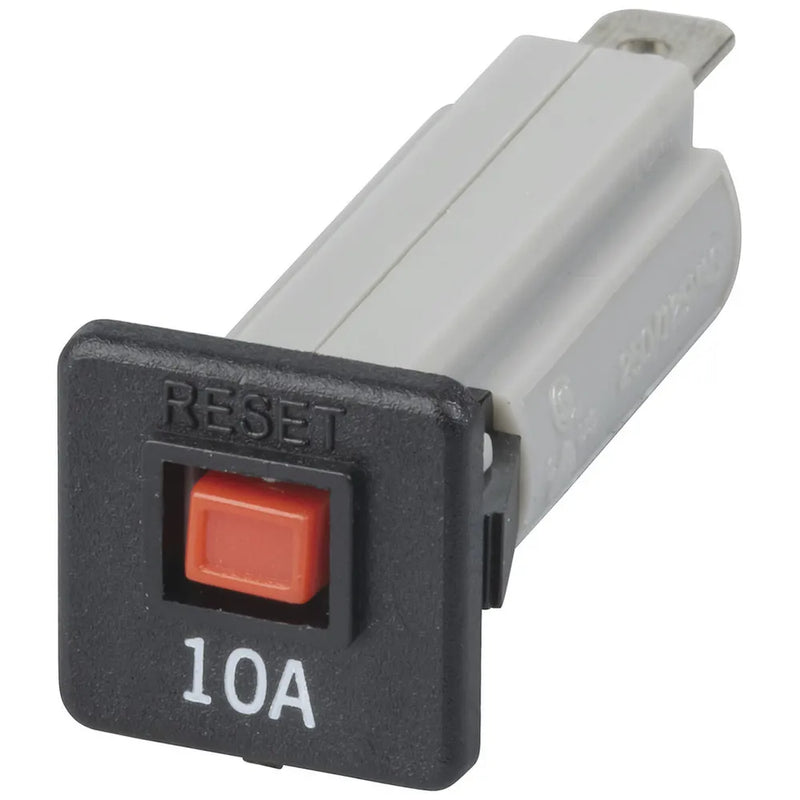

These attractive looking units feature a black 19mm square facade with a centrally mounted bright red `trip' button. When tripped, the red button extends and to reset simply push button back in (once fault has been cleared). It's slow response time ideal for inductive/reactive loads. IEC 934 TYPE R/TO.

Features:

  • Hold Current: 100% load indefinitely
  • Trip current:
    Within 1 hour at 135% load
    Within 1 min at 200% load
  • Contact Resistance: 0.16 ohms
