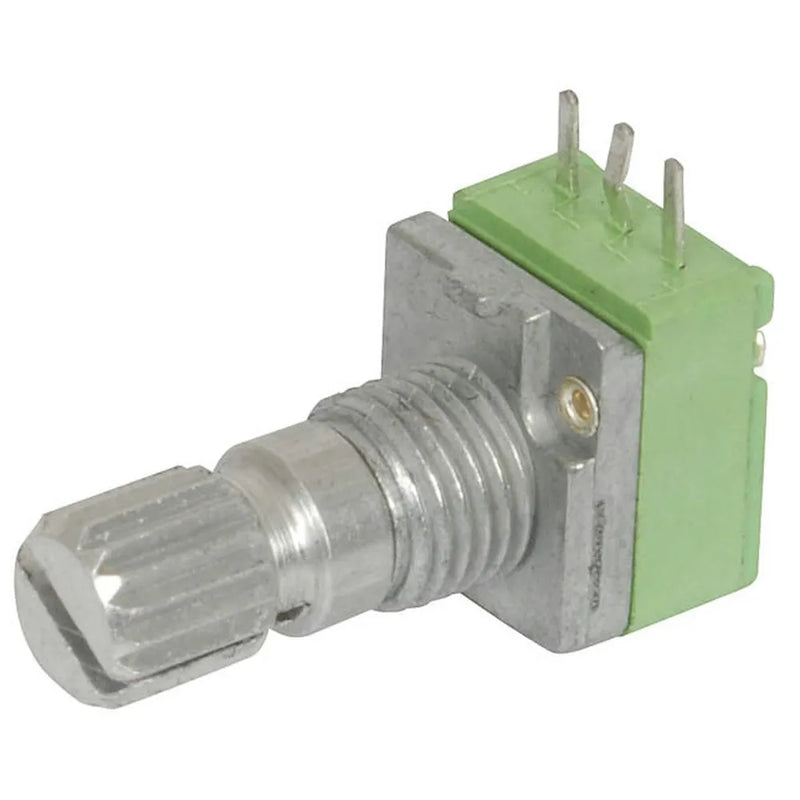

10k Ohm Linear (B) Single Gang 9mm Potentiometer
SKU RP8510
Original price
$5.66
-
Original price
$5.66
Original price
$5.66
$6.95
$6.95
-
$6.95
Current price
$6.95
Features:
Rated Power: 0.05W
Rated Voltage: 50VAC
Slider Noise: <100mV
Insulation resistance: >100M at 250VDC
Dielectric: 300VAC/Minute
Tracking Error: Within 3dB at 40~0dB
Mechanical Rotation Angle: 300° +/- 5°
Rotation Torque: 20~250gf.cm
Shaft Stop Strength: 5kgf.cm/min.
Value10K
Packaged Dimensions
| Packaged Volume | 0.00315l |
| Packaged Weight | 0.003kg |
| Packaged Length | 1.5cm |
| Packaged Width | 1cm |
| Packaged Height | 2.1cm |
Potentiometer
| Log or Linear? | Linear |
| Potentiometer Knob Type | Metric splined |
| Potentiometer Terminal Type | Solder Legs |
| Potentiometer Diameter | 9mm |
| Potentiometer Shaft Length | 10mm |
| potentiometer nut size | 9mm metric |
Passive Component
| Pack Quantity | 1pc |
| Passive mount type | Panel, Through Hole |
| Passive connector type | Solder Legs |
| Component package | Square pack |
| Passive number of legs | 3 count |
| Passive marking code | Number code |
Resistance Rating
| Resistance level | 10kΩ |
Power Rating
| Continuous Power | 0.05W |
AC Voltage Rating
| AC Voltage rating | 50V |
Product Availability
| Availability | Stocked item |
