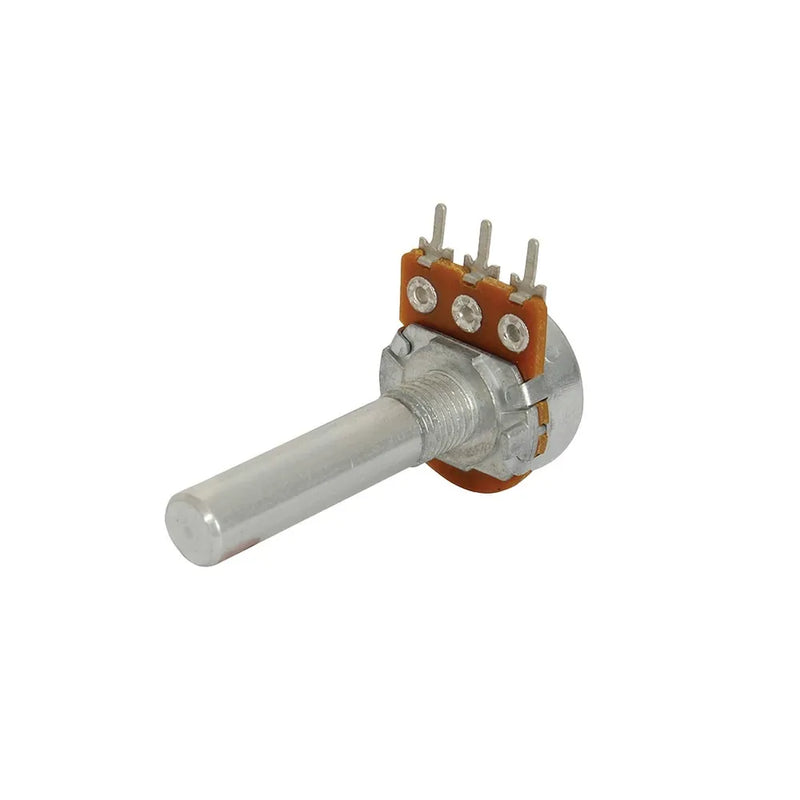

10k Ohm Logarithmic (A) Single Gang 16mm Potentiometer
SKU RP7610
Original price
$3.86
-
Original price
$3.86
Original price
$3.86
$4.95
$4.95
-
$4.95
Current price
$4.95
These pots have imperial standard shaft.- Shaft is 1/4 D type (30% of shaft has been removed for flat), so they suit all our knob range.- Shaft length is 30mm, so there is plenty there if you need more length.- Power rating Linear 0.2W and Log 0.1W.Value10K
Packaged Dimensions
| Packaged Volume | 0.015l |
| Packaged Weight | 0.006kg |
| Packaged Length | 4cm |
| Packaged Width | 1.5cm |
| Packaged Height | 2.5cm |
Potentiometer
| Log or Linear? | Logarithmic |
| Potentiometer Knob Type | Imperial D |
| Potentiometer Terminal Type | Solder Legs |
| Potentiometer Diameter | 16mm |
| Potentiometer Shaft Length | 23.5mm |
| potentiometer nut size | 16mm metric |
Passive Component
| Pack Quantity | 1pc |
| Passive mount type | Panel, Through Hole |
| Passive connector type | Solder Legs |
| Component package | Metal can |
| Passive number of legs | 3 count |
| Passive marking code | Number code |
Resistance Rating
| Resistance level | 10kΩ |
Power Rating
| Continuous Power | 0.06W |
AC Voltage Rating
| AC Voltage rating | 150V |
Product Availability
| Availability | Stocked item |
