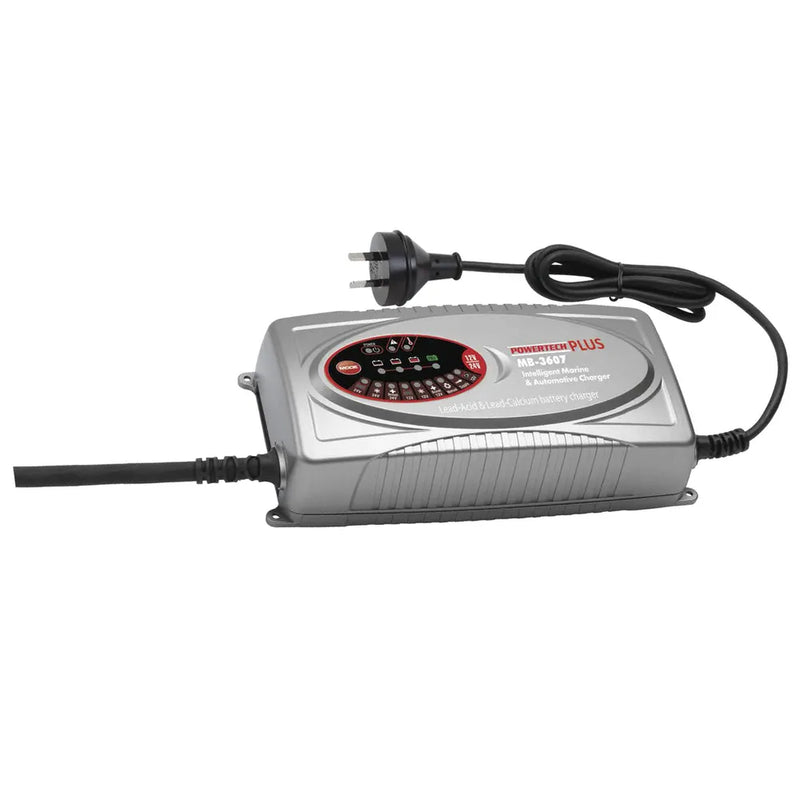

12/24V 15A 9 Step Switchmode Battery Charger
3 Year Warranty
Nine step fully automatic 15 amp high current charger with maintenance charging of all types of SLA batteries as well as lead-calcium batteries from 50 - 250Ah, and either 12V or 24V. The electronics are fully microprocessor controlled and protected against user error, so is totally safe to leave connected for months at a time. This charger will also charge in sub-zero temperatures, will recover sulphated batteries and can be used as a 10A power supply. Also features "boost" modes to recover deeply discharged batteries. The battery output lead has a temperature sensor to automatically compensate charging voltage dependant on temperature, so no matter what the conditions; you will get a full charge into your battery. The output lead is also fitted with Anderson connectors to allow for easy connection to existing wiring or use of the included alligator clips or bolt terminals.
Features:
•    Short circuit and reverse polarity protection
•    Anti-spark protection
•    IP44 outdoor rated
•    Standby, fault, mode selection and charging LED indicators
•    Mounting feet for wall mounting
•    Safe to leave connected for months at a time
•    Input voltage: 170 - 260VAC
•    Input current: 2A max
•    Charging current: 12V-15A, 24V-7.5A, 12V-Calcium-5A
•    Efficiency: >75%
•    Ripple: 150mV, 300mA max
•    Back current drain: <5mA
•    IP44 Rated
NOTE: These chargers are not recommended for long-term "maintenance" charging of unsealed lead-acid batteries, the types with removable filler caps and liquid elctrolyte. Long-term continuous float charging of this type of battery may cause loss of water from the electrolyte, ruining the battery. If you are intending to use this charger on these batteries please use an appliance timer such as MS6113 to automatically limit the charging to 30 minutes or so per day.
For More info on Intelligent Chargers and More info on Charging Batteries.
All-in-one chargers which have multiple charge settings to suitdifferent sized batteries and charging requirements. Capable of recharging the battery and maintaining the charge state indefinitely, they are particularly well suited to being continuously connected to a battery. Some models also have additional functions such as rapid boost charging and can also be used as a general purpose high current power supply. For further information see these types of possible charging states *may not be applicable to the unit you are viewing *
BATTERY TEST - Checks the battery to ensure it is ready for charging, polarity of leads etc.
DESULPHATION: Detects sulfated batteries. Pulsing current and voltage, removes sulfate from the lead plates of the battery restoring the battery.
SOFT START: Initial battery test to determine battery condition. Ift he battery is severely discharged, charger will begin the Soft Start stage. Charging starts with reduced current until battery voltage reaches a normal condition for charge.
BULK MODE: Major charging stage where the battery receives the majority of its charge. During this stage the battery is charged to up to 80% capacity.
ABSORPTION MODE: Completes the charge up to virtually 100% at a slower charge rate to protect the batteries working life.
RECONDITION MODE: Select “Recondition” mode, charges at higher voltage to recondition the sulfate of the battery to save battery life.
ANALYSIS: Tests if the battery can hold charge. Batteries that cannot hold charge may need to be replaced.
FLOAT: Low constant voltage, minimal charge current, battery is fully charged.
PULSE MODE: Maintaining the battery at 95-100% capacity. The charger monitors the battery voltage and gives
