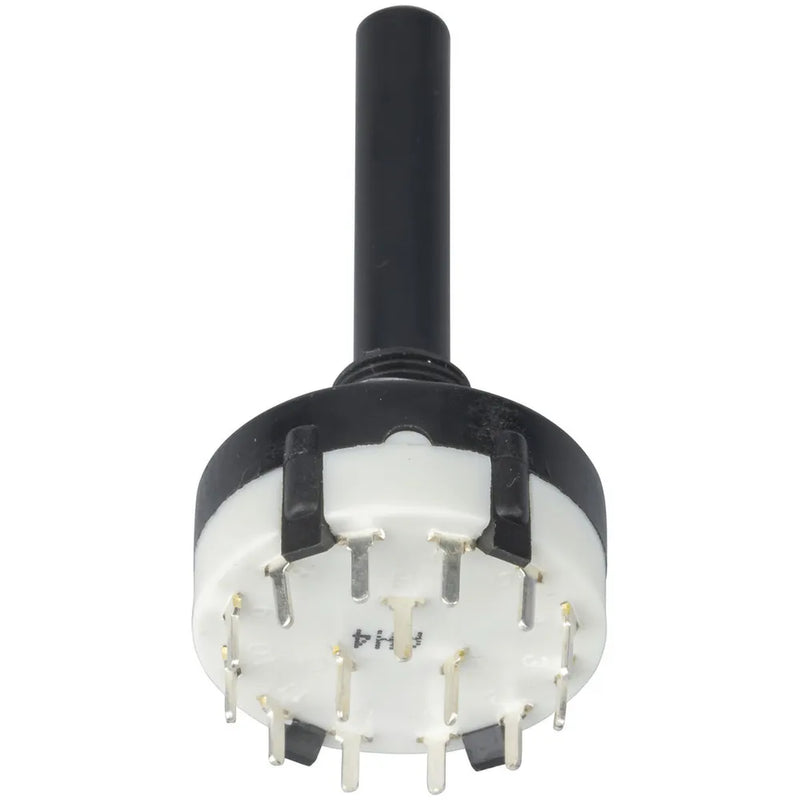

3 pole Sealed PCB Rotary
SKU SR1214
Original price
$5.91
-
Original price
$5.91
Original price
$5.91
$7.95
$7.95
-
$7.95
Current price
$7.95
These switches have a removable ring with tab which can be inserted into the switch several ways to your particular requirements. For example, if you purchased a 1 pole x 12 way (max) switch you could convert it to, say, 1 pole 7 way between stops. They have a standard 1/4 shaft.
From 3 pole 2 position to 3 pole 4 position
From 3 pole 2 position to 3 pole 4 position
Electromechanical Switch
Switch Type | Rotary |
Poles / Contacts | 3 pole |
Throws / Positions | 4pos |
Switch Connection | Spade Terminals |
Break/Make Function | Break Before Make (BBM) |
Product Mounting
Attachment / Securing Method | Snap-in |
Round Mount Hole Diameter | 10mm |
Mounting Method | PCB |
AC Voltage Rating
AC Voltage rating | 240V |
AC Current Rating
AC current rating | 150mA |
Packaged Dimensions
Packaged Volume | 0.03375l |
Packaged Weight | 0.011kg |
Packaged Length | 2.5cm |
Packaged Width | 2.5cm |
Packaged Height | 5.4cm |
Product Availability
Availability | Stocked item |
