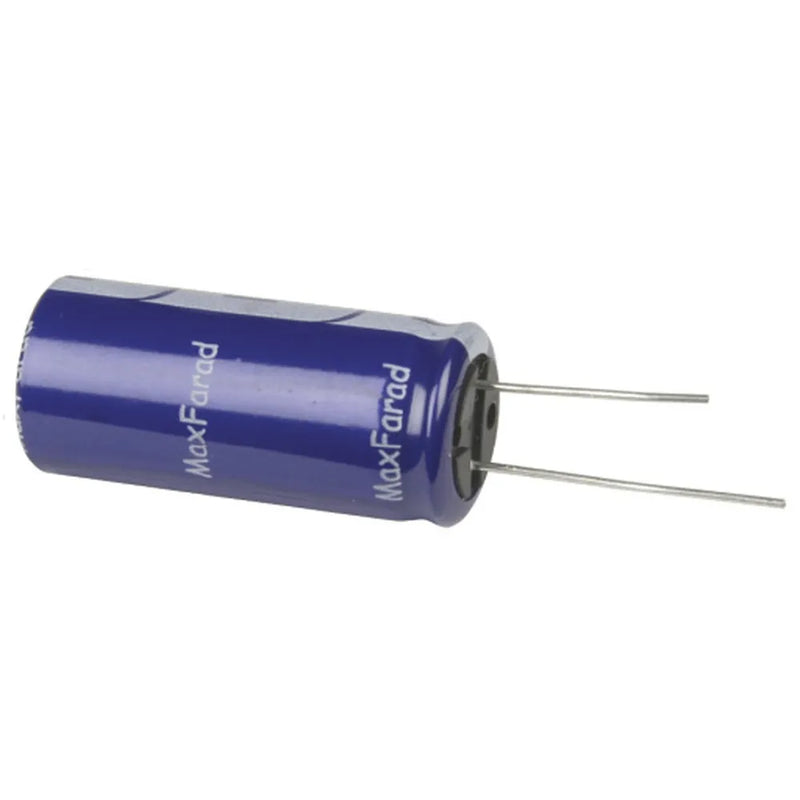

55F 2.5VDC Super Capacitor
This is not a misprint!
These specially engineered capacitors are actually a high-tech energy storage device - not the standard capacitors which they look identical to. Using a new combination manufacturing process where nano suface structured carbon is combined with an organic electrolytes, this technique enables these capacitors to store 100 times the energy of a standard electrolytic capacitor.
The main applications are energy storange at a circuit board level replacing the bulkier secondary batteries which are currently used. Essentially anywhere high energy storage is needed.
Features:
- High density of energy
- Long lifetime (10 years)
- High cycle life (over 500,000 cycles)
Ceramic:
These offer low cost and high capacitance in a small physical size. Normally there are two types, the ‘High Stability Temperature Compensating’ type and the ‘Bypass and Coupling’ type. The former for use in resonant circuit and filter applications, with a value largely independent of voltage and frequency. The latter is for use in less critical applications, as they are less stable and have non-linear temperature characteristics and are somewhat voltage dependent.Polyester:
These type offer good stability, a large range of values at low cost, and are the most widely used capacitor for general purpose.Polycarbonate:
These have a low temperature coefficient, low dielectric loss at high frequency and excellent temperature stability characteristics.Polystyrene:
These offer tight tolerance and are highly stable; making them suitable for very stable tuned circuits and oscillators.Polypropylene:
This type has a very low dielectric loss and are particularly suitable in audio circuits and sample-and-hold circuits.Mylar:
This is the Du Pont tradename for polyester. They usually have an aluminium film deposit on the dielectric and are called metallised polyester.
Product Dimensions
Height | 40mm |
Diameter | 18mm |
Packaged Dimensions
Packaged Volume | 0.01792l |
Packaged Weight | 0.014kg |
Packaged Length | 1.6cm |
Packaged Width | 1.6cm |
Packaged Height | 7cm |
Capacitor
Capacitor type | Super cap |
Polarised Capacitor |
Capacitance Rating
Item capacitance | 55F |
DC Voltage Rating
DC Voltage | 2.5V |
Passive Component
Component Type | Electrolytic Capacitor |
Pack Quantity | 1pc |
Pitch | 7.5mm |
Passive mount type | Through Hole |
Passive connector type | Solder Legs |
Component package | Radial |
Passive number of legs | 2 count |
Passive marking code | Printed |
