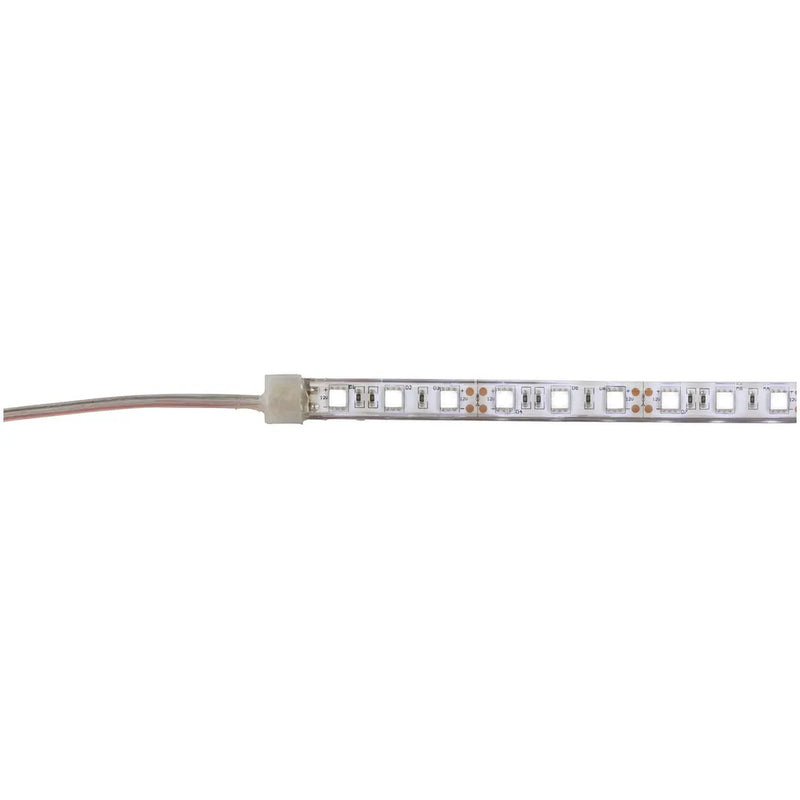

5m Ultra Bright IP67 Weatherproof LED Flexible Strip Light
Fully waterproof yet flexible, this versatile LED strip is made from an array of 300 ultra high brightness 5050 SMD-type LEDs. Perfect for any outdoor application needing some bright, reliable lighting. Everything's encapsulated in a protective casing to keep the dust and water out. Weatherproof male / female connections are provided for easy installation, simply hook the flylead end to a suitable 12V power source and plug in the strip.
• 850 lumens per metre (3750lm total)
• Self-adhesive backing
• Sold as a single 5m length
• Can be cut to shorter lengths
Our range of LED strip lights are made using some of the most common type of SMD LEDs used in LED lighting products; the 3528 type, and the 5050/5060type. Their model designations actually come from their footprint dimensions:3528 = 3.5x2.8mm, 5050 = 5.0x5.0mm, and 5060 = 5.0x6.0mm. The 3528 type is a single LED emitter type in a very compact package, whereas the 5050 and5060 type are commonly referred to as triple-chip due to having three LED emitters built into the one package. The 3528 typically offers superior lumen performance per emitter and greater light efficiency than 5050/5060, but the5060/5060 triple-chip types are more cost effective due to lower manufacturing and production costs when built into a finished product.
Lighting Details
LED Type | 5050 SMD |
LED Connection | SMD |
LED replaceable | |
LED Quantity | 300pc |
Illuminated Colour | Cool white |
Light Output
Lumens Rating | 4250lm |
Product Mounting
Mounting Method | Self Adhesive |
Ingress Protection Rating
IP Rating | IP67 |
Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
Liquid/Moisture Ingress Protection | 7 - Immersion up to 1m |
Product Dimensions
Length | 5m |
Width | 13mm |
Height | 5mm |
Power Source Details
DC Voltage | 12V |
DC Current Draw | 5A |
Item connection | Flyleads, Barrel Plug |
Connection Details | Supplied with weatherproof 2.1mm DC plug and matching socket flylead, DC plug can be joined to DC plug on PSU output with suitable adaptor (sold separately) |
Connection Size | 2.1mm |
Product Availability
Availability | Stocked item |
Packaged Dimensions
Packaged Volume | 2.7874l |
Packaged Weight | 0.57kg |
Packaged Length | 30.5cm |
Packaged Width | 24.7cm |
Packaged Height | 3.7cm |
