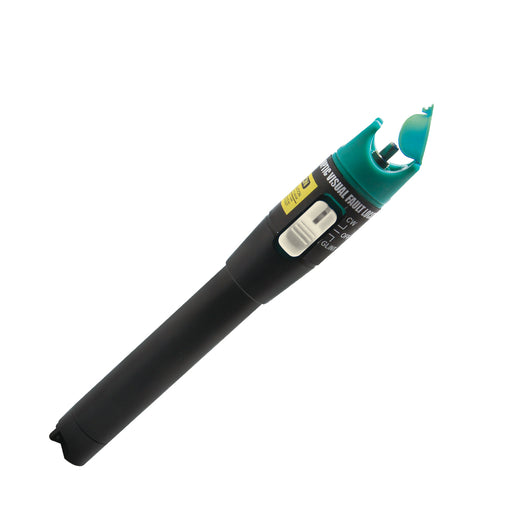

5mW Fiber Optic Visual FaultLocator

Fiber optic visual fault locator is designed for field personnel who need an efficient and economical tool for continuity checking in an optical network during and after installation. It is easy to locate the breakpoint and bad connections in fiber optic cables.

Features

• Portable, durable and ease to use
• Support 2.5mm universal connectors (for FC/SC/ST)
• Dust-proof & Crash-proof Cap design for laser head
• Both continuous and flashing modes available
• Additional pouch bag receives convenient



Model Number	MT-7505
Wavelength	650 nm±10 nm
Output Power	5 mW
Light Source	CLASS IIIA
Tested Fiber Length	6-7KM
Power (batteries)	AA (1.5 V) x 2
Connector	2.5mm universal connector for FC, ST and SC
OAL	175MM
Operating Temperature	-10~+55 ℃
Storage Temperature	-40~+70 ℃
Optional Accessory	LC adaptor (5MT-7601-LC)

Downloads

MT_750XuserManual.pdf (Multi Language)

Manual

Download
