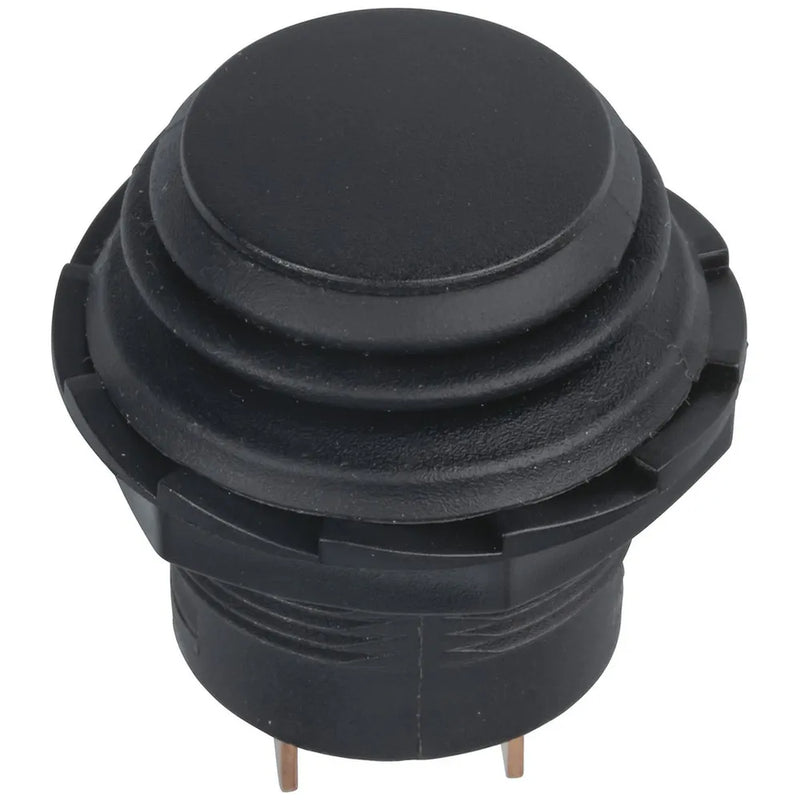

Black Momentary IP65 Pushbutton Switch
SKU SP0756
Original price
$13.07
-
Original price
$13.07
Original price
$13.07
$15.95
$15.95
-
$15.95
Current price
$15.95
IP65 Momentary pushbutton switch
Electromechanical Switch
| Mechanism Material | Plastic |
| Switch Colour Coded | Black |
| Pole Throw Type | SPST |
| Switch Type | Pushbutton |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Switch Connection | Spade Terminals |
| Switch Function | Single Action Momentary |
Product Mounting
| Attachment / Securing Method | Collar / Nut |
| Round Mount Hole Diameter | 22mm |
| Mounting Method | Panel |
| Max Mount Panel Thickness | 6mm |
DC Voltage Rating
| DC Voltage | 14V |
DC Current Rating
| DC current rating | 10A |
Ingress Protection Rating
| IP Rating certificate | |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| IP Rating | IP65 |
Packaged Dimensions
| Packaged Volume | 0.021875l |
| Packaged Weight | 0.01kg |
| Packaged Length | 3.5cm |
| Packaged Width | 2.5cm |
| Packaged Height | 2.5cm |
Product Availability
| Availability | Stocked item |
