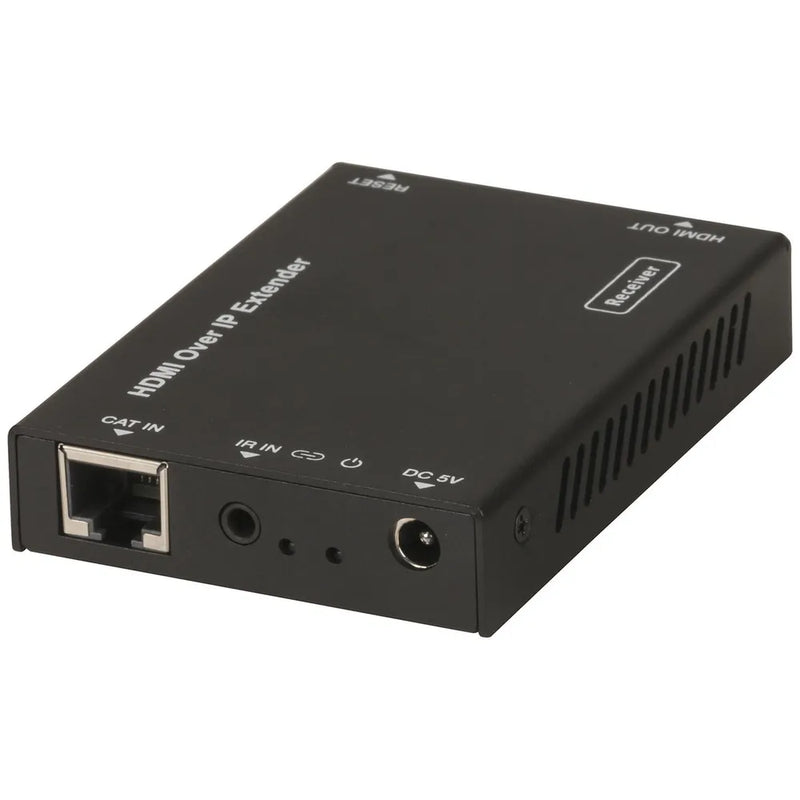

Digitech Spare HDMI Over IP Receiver to suit AC1752

Digitech Spare HDMI Over IP Receiver to suit AC1752

by Sydney Digital
SKU AC1753
$54.17 - $54.17
$54.17
$65.95
$65.95 - $65.95
$65.95
1 Year Warranty

An extra receiving module to add or replace to your existing setup. Compatible with our base extension kit AC1752 (Click for more information).

A/V Switcher or Converter

Switcher/Converter Type
 Balun Extender
Output Type
 HDMI
Output Connection
 HDMI Type-A, HDMI Type-A
Additional Functions
 Remote Extender

Power from Plugpack

DC Current Draw
 1A, 1A, 1A
DC Plugpack Voltage
 5V, 5V, 5V
Item Connection
 Barrel Plug
PSU Powers
 Receiver, Receiver
Suitable PSU Included
 true, true

Power from Plugpack (secondary)

Suitable PSU Included
 true, true
PSU Powers
 Receiver, Receiver
DC Plugpack Voltage
 5V, 5V, 5V
DC Current Draw
 1A, 1A, 1A

Video Resolution

Resolution Frequency
 60Hz-60Hz
HDMI Version
 1.30000000
HDMI Maximum Data Rate
 6.75Gb/s-6.75Gb/s
HDMI Maximum Colour Depth
 8b
HDMI Colour Space Compatibility
 RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDCP Version
 1.4b
Maximum Horizontal Resolution
 1200Pixel
Maximum Vertical Resolution
 1920Pixel
Compliant with
 H.264 and H.265 Compression

Audio Format

Digital Audio Format
 LPCM
Maximum Signal Frequency
 48kHz
Maximum Channel Support
 2ch

Infrared Remote Control Extender

Extender Type
 Balun (UTP Cable)
Maximum Range
 150m
IR Signal Fequency Compatibility
 60kHz-60kHz

Signal Extender Balun

Signal Type
 HDMI
Connecting Cable
 Cat5e UTP, Cat6 UTP
Connecting Cable Termination
 RJ45
Maximum Distance Between Baluns (cat5e)
 100m, 100m
Maximum Distance Between Baluns (cat6)
 150m, 150m
Output Connection
 HDMI Type-A, HDMI Type-A

Product Dimensions

Dimensions for
 Receiver
Width
 61mm
Height
 17mm
Weight
 150g
Depth
 86mm

Packaged Dimensions

Packaged Volume
 1.56l
Packaged Weight
 0.342kg
Packaged Length
 20cm
Packaged Width
 12cm
Packaged Height
 6.5cm
Warranty: 12 Months
