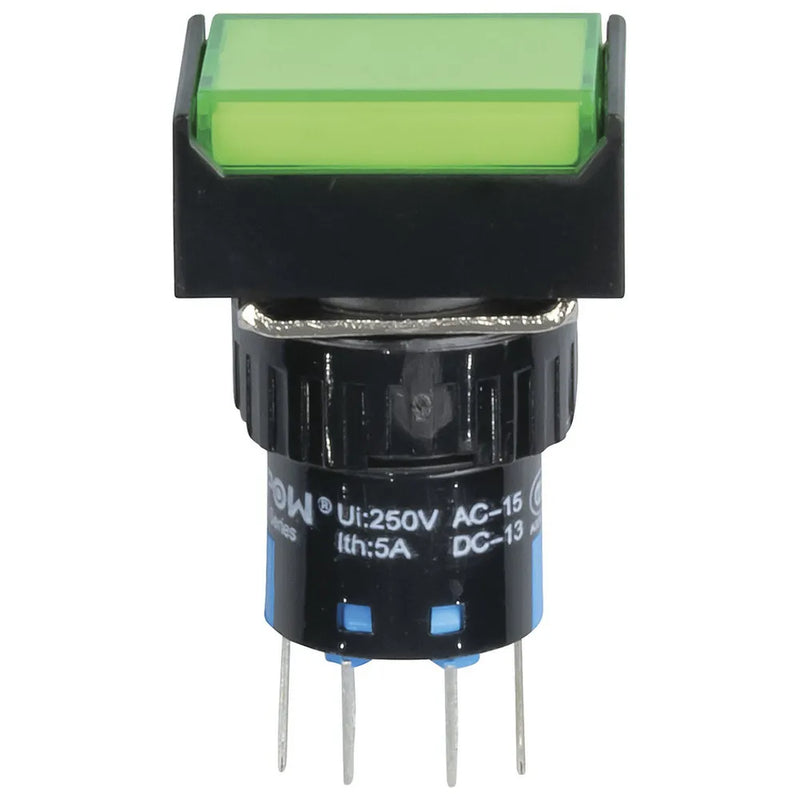

DPDT Illuminated Momentary Pushbutton IP65 Green
SKU SP0747
Original price
$20.23
-
Original price
$20.23
Original price
$20.23
$24.95
$24.95
-
$24.95
Current price
$24.95
Features:
• IP65 rated
• DPDT
• Momentary action
• 12VDC LED illumination
Electromechanical Switch
| Switch Type | Pushbutton |
| Mechanism Material | Plastic |
| Switch Colour Coded | Green |
| Pole Throw Type | DPDT |
| Poles / Contacts | 2 pole |
| Throws / Positions | 2pos |
| Switch Connection | Solder Legs |
| Switch Function | Single Action Momentary |
Product Mounting
| Mounting Method | Panel |
| Round Mount Hole Diameter | 15mm |
| Attachment / Securing Method | Collar / Nut |
AC Voltage Rating
| AC Voltage rating | 250V |
AC Current Rating
| AC current rating | 3A |
In-built Illumination
| Illumination Colour | Green |
| Nominal Voltage | 12V-12V |
| Connection | Solder Legs |
| Type | 3mm Standard LED |
| Illumination Position | Top |
Product Dimensions
| Length | 24mm |
| Width | 18mm |
| Height | 41mm |
Packaged Dimensions
| Packaged Volume | 0.01728l |
| Packaged Weight | 0.01kg |
| Packaged Length | 4cm |
| Packaged Width | 2.4cm |
| Packaged Height | 1.8cm |
Product Availability
| Availability | Stocked item |
