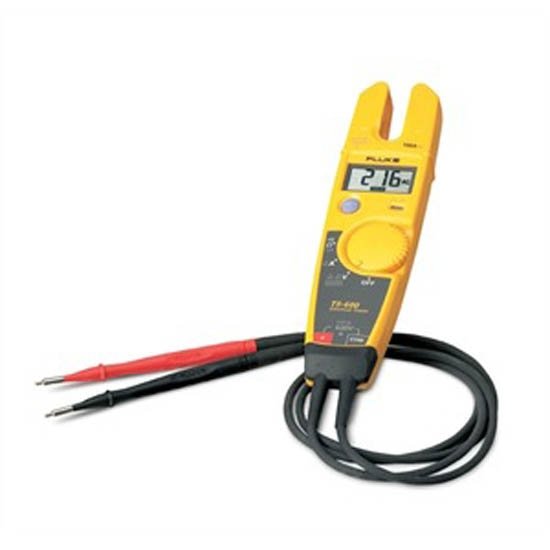

Fluke T5-600 Voltage, Continuity and Current Tester
Fluke T5-600 Voltage, Continuity and Current Tester
Fluke T5-600 Voltage, Continuity and Current Tester Overview
The T5-600 Voltage Continuity and Current Tester is a versatile troubleshooting tool for up to 600 V environments. Use it to check voltage, continuity, and current with one compact tool. Just select volts, ohms, or current and the tester does the rest. Its OpenJaw™ current measurement lets you check current up to 100 A without breaking the circuit.
Detachable SlimReach™ test probes are customized for national electrical standards. Plus, its tough test leads accept optional accessories such as clips and specialty probes. The test leads stow neatly in the back of the tester, making it easy to carry in your tool pouch. Add the optional H5 holster and you can clip the T5-1000 onto your belt. For higher voltage applications check out the Fluke T5-1000.
Other useful capabilities:
Features a compact design with handy probe storage
Withstands a 10 ft. (3 m) drop
Includes detachable SlimReach™ probe tips that are customized for national electrical standards
Can stay connected much longer than solenoid type testers
Offers Auto-off mode to conserve battery life
Fits into an optional holster that attaches to a belt and neatly stows test leads
Fluke T5-600 Voltage, Continuity and Current Tester Features
Reliable electrical tester automatically measures volts AC and volts DC with precise digital resolution
Includes easy, accurate OpenJaw™ current measurement
Displays resistance to 1000 ?
Includes a continuity beeper for quick go/no-go tests
All inputs are protected to EN61010-1 CAT III 600 V rating. UL, CSA
Fluke T5-600 Voltage, Continuity and Current Tester Includes
600 V Voltage, continuity and current tester
4 mm detachable probes
Instruction sheet
Fluke T5-600 Voltage, Continuity and Current Tester Specifications
Specifications
Jaw opening
12.9 mm (0.5 in)
Max wire size
1/0 THHN Cable
Current range AC rms
0 to 100.0 A
Accuracy AC current (50/60 Hz)
3% ± 3 counts
AC response
Averaging
Voltage range AC/DC
0 to 600 V
Voltage accuracy
AC
1.5% ± 2 counts
DC
1% ± 1 count
Resistance range
0 to 1000 ?
Continuity beeper threshold
On at < 25 ?, off at > 400 ?
Volts indicator LED threshold
Guaranteed on by 30 V AC
Environmental Specifications
Operating temperature
-10°C to 50°C
Storage temperature
-30°C to 60°C
Humidity (without condensation)
0% to 95% (5°C to 30°C);
0% to 75% (30°C to 40°C);
0% to 45% (40°C to 50°C)
Dust/water resistance
Yes
Operating altitude
2000 meters max
Temperature coefficient
0.1 x (specified accuracy)/°C (< 18°C or > 28°C)
Safety Specifications
Measurement Category
IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac
Agency approvals
CSA, TUV
Maximum voltage
600 V between any terminal and earth ground
Mechanical and General Specifications
Size
30.5 x 51 x 203 mm
Weight
300 g
Warranty
Two-years
Battery life
200 hour zinc chloride, 400 hour alkaline
Battery type
2 x AA
Low battery indicator
Yes
Current sensor opening
12.9 mm
Calibration cycle
1 year
Test leads
Type
Heavy duty, flexible leads rated for 1000 V use.
Field replaceable leads terminate in male shrouded banana plugs
Probes
One red, one black.
Detachable Slim-Reach™ probe tips
Styles
TP1 Slim Reach™ Test Probes
