IP65 LED Light Module String, 10x 3x3528-LEDs, Cool White

SKU ZD0590
Original price $30.11 - Original price $30.11
Original price $30.11
$36.95
$36.95 - $36.95
Current price $36.95
LED

A very flexible and weatherproof (IP65) solution for low power lighting; use for backlighting of signs, illuminating stairwells, marine lighting, caravan lighting, etc. Each string is supplied as a 1m length of wire, with ten modules containing three high brightness SMD LEDs along the length of the string. You can cut the string to supply power to each module separately if you wish, allowing for a whole host of different applications. Simply provide 12VDC power and you are in business. Available in standard 3528-LED or ultra-bright 5050-LED versions, and in cool white, warm white or blue colours depending on the model you chose

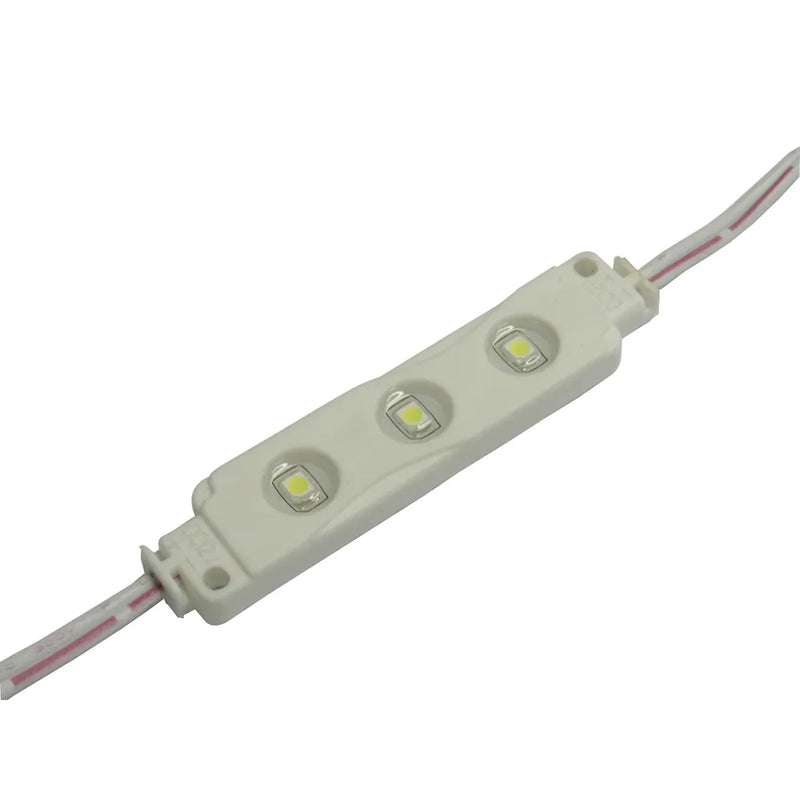

ZD-0590 IP65 LED Light Module String, 10x 3x3528-LEDs, Cool White

Features:
• Lumen output: 13.5lm per module (135 total)
• LEDs: 10x (3x3528)

Note: The wiring convention on this unit is slightly different. Connect positive to the white wire and negative to the red wire.

Product Dimensions


Length
71mm
Width
15mm
Height
5.5mm

Packaged Dimensions


Packaged Volume
0.294l
Packaged Weight
0.074kg
Packaged Length
14cm
Packaged Width
10.5cm
Packaged Height
2cm

LED Components


LED Type
3528 SMD
Viewing Angle
120°
Vf (typ) - Typical Forward Voltage
12V
If (typ) - Typical Forward Current
300mA
Light Colour
Cool White

Lighting Details


Colour Temperature
6000K, 6500K

Product Availability


Availability
Stocked item
