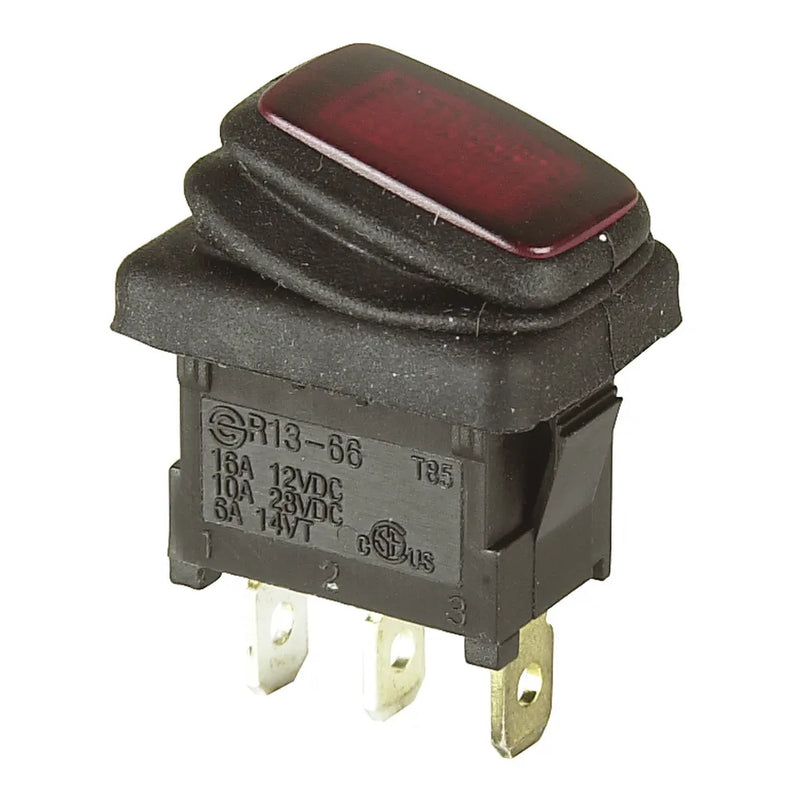

IP65 Rated Mini Illuminated Rocker Switch SPST 16A 12VDC
SKU SK0969
Original price
$15.46
-
Original price
$15.46
Original price
$15.46
$18.95
$18.95
-
$18.95
Current price
$18.95
SPST mini rocker switches with spade QC lugs. Sealed with a rubber boot and IP65 rated.
Two types available:
Black: SK-0968
Red (illuminated): SK-0969
Two types available:
Black: SK-0968
Red (illuminated): SK-0969
Electromechanical Switch
| Mechanism Material | Plastic |
| Switch Colour Coded | Black |
| Pole Throw Type | SPST |
| Switch Type | Rocker |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Switch Connection | Spade Terminals |
| Switch Function | Locking On/Off |
| Contact Resistance | 50Ω |
| Insulation Resistance | 100MΩ |
| Dielectric Strength | 1000V |
Product Mounting
| Attachment / Securing Method | Snap-in |
| Mounting Method | Panel |
| Square Mount Hole Width | 12mm |
| Square Mount Hole Height | 19mm |
DC Voltage Rating
| DC Voltage | 12V |
DC Current Rating
| DC current rating | 16A |
Ingress Protection Rating
| Dust/Particle Ingress Protection | 5 - Dust protected, protected but some dust may enter |
| Liquid/Moisture Ingress Protection | 6 - Powerful water jets |
In-built Illumination
| Illumination Colour | Red |
| Nominal Voltage | 12V-12V |
| Connection | Spade Terminals |
| Type | 5mm Standard LED |
Product Dimensions
| Length | 21mm |
| Width | 14.8mm |
| Height | 24.6mm |
Packaged Dimensions
| Packaged Volume | 0.09722l |
| Packaged Weight | 0.006kg |
| Packaged Length | 11.9cm |
| Packaged Width | 4.3cm |
| Packaged Height | 1.9cm |
Product Availability
| Availability | Stocked item |
