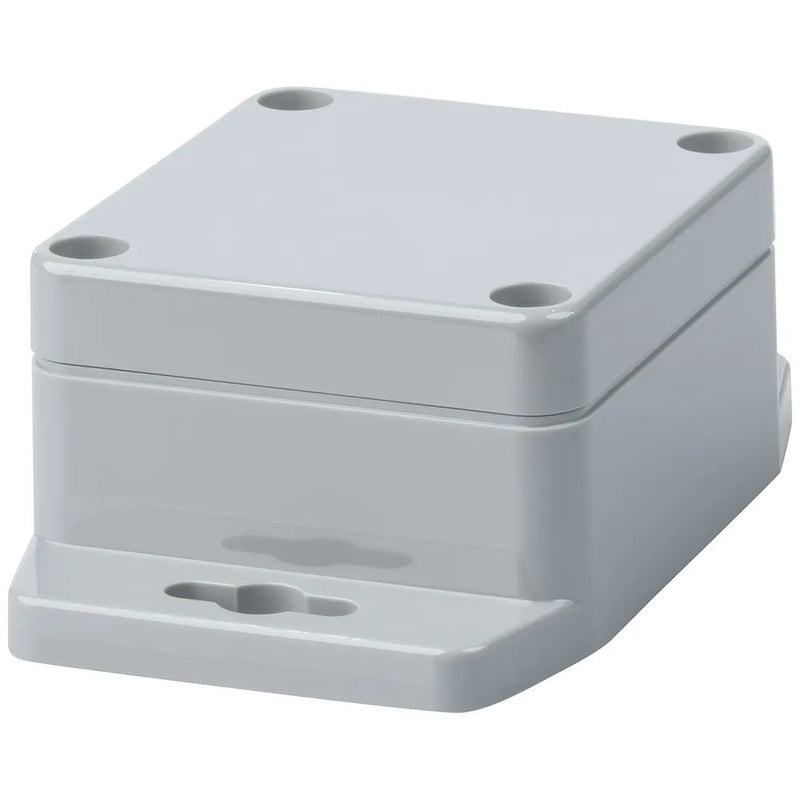

IP65 Sealed ABS Enclosures - Dark Grey with Mounting Flange - 64x58x35mm
SKU HB6121
Original price
$10.68
-
Original price
$10.68
Original price
$10.68
$12.95
$12.95
-
$12.95
Current price
$12.95
Features:
- Operating temperature: -20 to 80 degrees
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
- Flange to allow mounting after the box has been sealed
Product Dimensions
| Weight | 155g |
| Height | 35mm |
| Depth | 58mm |
| Dimension details | Box Dimensions |
| Width | 64mm |
Packaged Dimensions
| Packaged Volume | 0.40196l |
| Packaged Weight | 0.078kg |
| Packaged Length | 12.3cm |
| Packaged Width | 7.6cm |
| Packaged Height | 4.3cm |
Additional Dimensions
| Width | 64mm |
| Depth | 58mm |
| Dimensions details |
Enclosures and Boxes
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
| PCB Internal Guide Slots | |
| Gasket sealing system | |
| Lid Screws | 4pc |
| Gasket Material | Neoprene |
| Internal Mounting Posts | |
| Ventilation Holes |
Product colour
| Colour | Dark Grey |
Ingress Protection Rating
| IP Rating | IP65 |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
Product Availability
| Availability | Stocked item |
