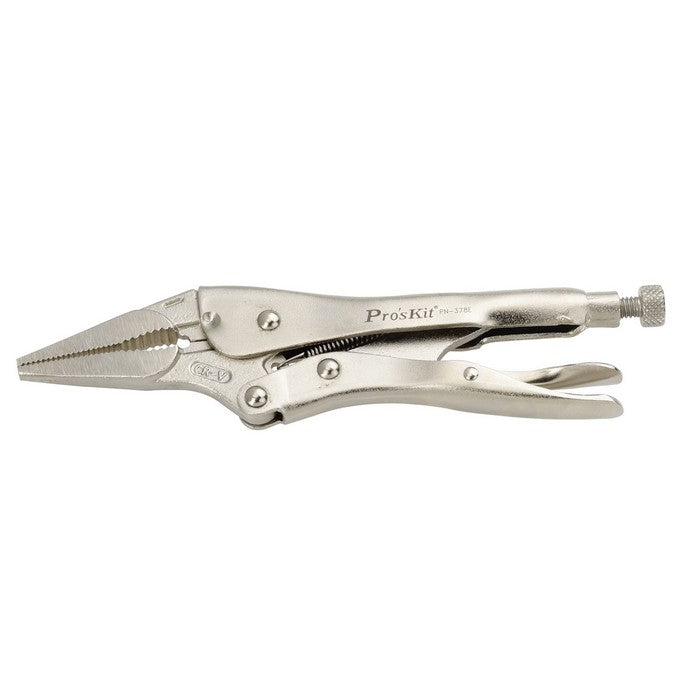

Long Nose Locking Plier 225mm

The forged jaws have an angled tooth pattern for superior grip and built-in wire cutter.
The handle features a compound action non-slip lock and release lever for one-hand operation
With precision-machined jaw adjustment screw to fit work.
Heavy duty model, provide maximum contact for holds round, flat, square, or hex material securely.

Features

• Constructed of high-grade heat-treated Cr-Mo steel for durability and long-term performance.
• The forged jaws have an angled tooth pattern for superior grip and built-in wire cutter.
• The handle features a compound action non-slip lock and release lever for one-hand operation
• With precision-machined jaw adjustment screw
• Long, straight nose provides easy access in narrow and hard-to reach places
• Heavy duty model, provide maximum contact for holds round, flat, square, or hex material securely



Model No.	Material		HRC	Clamping width	OAL.(mm)
	Head	Handle	Body
PN-378D	SAE 4140Cr-Mo alloy steel	SAE 4135Cr-Moalloy steel	50˚±3˚	Round:Ø8.5~50mm, Hex: Ø8.5~43.3mm	224 (9")
PN-378E				Round: Ø7.5~41mm, Hex: Ø7.5~35.41mm	225 (9")
