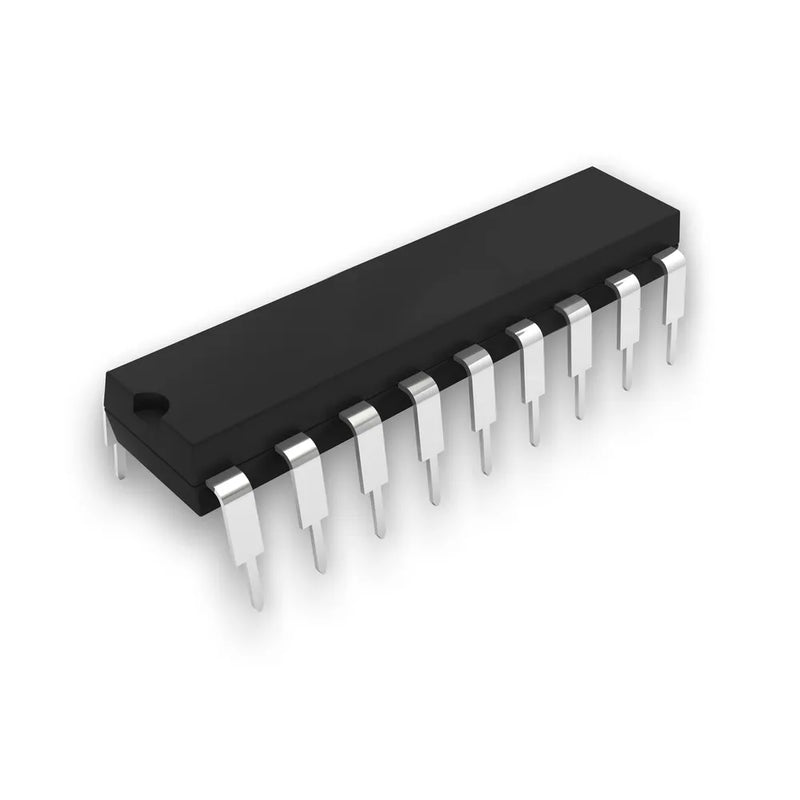

MCP23008 8-Bit Expander with Serial Interface DIP18
SKU ZK8869
Original price
$5.91
-
Original price
$5.91
Original price
$5.91
$7.95
$7.95
-
$7.95
Current price
$7.95
This IC will allow you to expand the number of input and output pins on your microcontroller. It uses 3 I2C pins to give 8 general purpose input/output pins. It even includes a configurable interrupt output that can be set as active-high, active-low or open-drain.
44 page data sheet available for download.
Features:
• 1.8 - 5.5VDC Input
• Low standby current (less than 1µA)
• 8 Configurable Input/Output Pins
• 1.7MHz High Speed I2C Interface
• External Reset Input
Integrated Circuit (IC)
| IC supply voltage | 5.5V |
| IC Type | Multiplexer / Demultiplexer |
Active Component
| active number of legs | 18 count |
| component package | DIL |
| active marking code type | Printed |
| active mount type | Through Hole |
| unique marking code | MCP23008-E/P |
| active connector type | Solder Legs |
| max temperature | 125°C |
| minimum temperature | -40°C |
| active case colour | Black |
Product Dimensions
| Weight | 1.3g |
Product Availability
| Availability | Stocked item |
Packaged Dimensions
| Packaged Volume | 9.2E-4l |
| Packaged Weight | 0.002kg |
| Packaged Length | 2.3cm |
| Packaged Width | 0.8cm |
| Packaged Height | 0.5cm |
