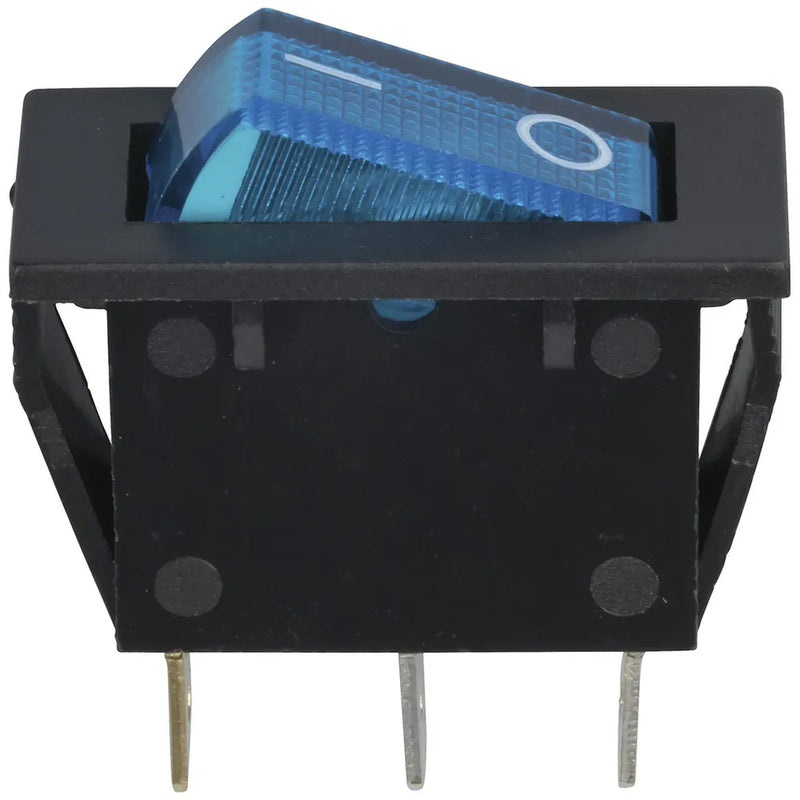

Rocker Switch Illuminated Blue SPST 15A 240VAC
SKU SK0976
Original price
$4.72
-
Original price
$4.72
Original price
$4.72
$5.95
$5.95
-
$5.95
Current price
$5.95
240V Mains Power
SPST 240V 15A rocker switches. Spade lug connectors with QC fittings. Black body with illuminated actuator.
Three types available:
> Blue: SK-0976
> Red: SK-0978
> Green: SK-0979
Electromechanical Switch
| Mechanism Material | Plastic |
| Switch Colour Coded | Blue |
| Pole Throw Type | SPST |
| Switch Type | Rocker |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Switch Connection | Spade Terminals |
| Switch Function | Locking On/Off |
| Cycle Life | 10000 cycles |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Strength | 1000V |
Product Mounting
| Attachment / Securing Method | Snap-in |
| Mounting Method | Panel, Front of Panel |
| Square Mount Hole Width | 13.5mm |
| Square Mount Hole Height | 29mm |
AC Voltage Rating
| AC Voltage rating | 240V |
AC Current Rating
| AC current rating | 15A |
In-built Illumination
| Illumination Colour | Blue |
| Nominal Voltage | 250V-250V |
| Connection | Spade Terminals |
| Type | Neon |
Product Dimensions
| Length | 33.8mm |
| Height | 19.9mm |
| Width | 13.8mm |
Packaged Dimensions
| Packaged Volume | 0.02048l |
| Packaged Weight | 0.006kg |
| Packaged Length | 3.5cm |
| Packaged Width | 1.5cm |
| Packaged Height | 3.9cm |
Product Availability
| Availability | Stocked item |
