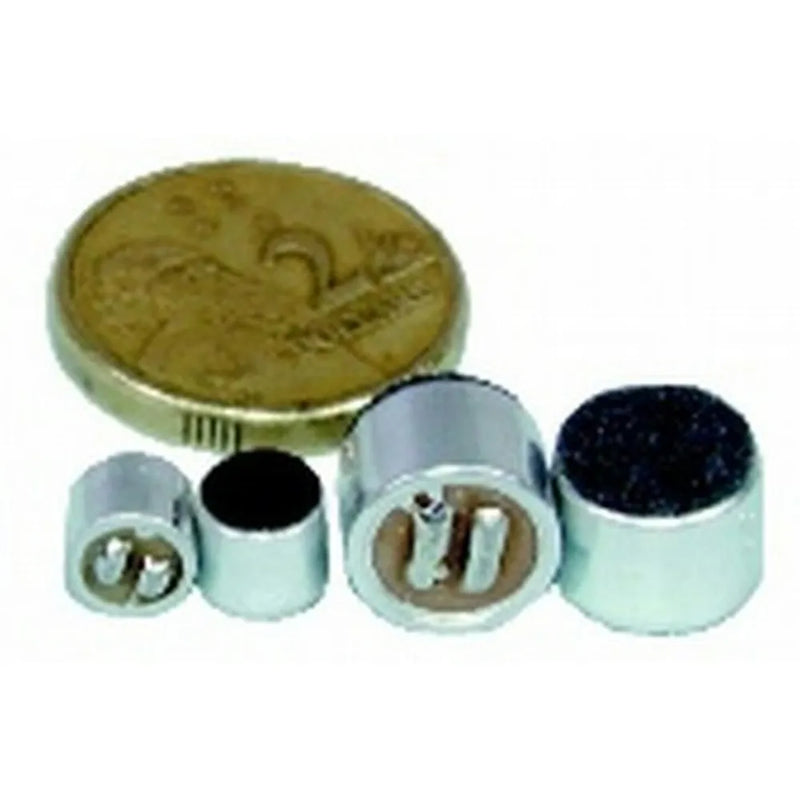

Standard Microphone Insert
SKU AM4010
Original price
$4.41
-
Original price
$4.41
Original price
$4.41
$5.95
$5.95
-
$5.95
Current price
$5.95
Once power is supplied they work beautifully. For example, you can solder them to a PCB for a mic input. Used by OEM’s. Omnidirectional.
Features:
• Power: 1.5V – 10VDC
• Current consumption: <0.5mA
• S/N ratio: >56dB
• Solder tabs
Product Dimensions
| Height | 6.7mm |
| Diameter | 9.7mm |
Packaged Dimensions
| Packaged Volume | 0.001l |
| Packaged Weight | 0.001kg |
| Packaged Length | 1cm |
| Packaged Width | 1cm |
| Packaged Height | 0.8cm |
Microphone
| Type | Electret Insert |
| Insert/Pickup Type | Electret |
| Frequency Response | 50Hz-16kHz |
| Impedence | 2.2kΩ |
| Sensitivity | 68dB |
| Sensitivity Tolerance | 3% |
| Windsock Included |
Product Availability
| Availability | Stocked item |
