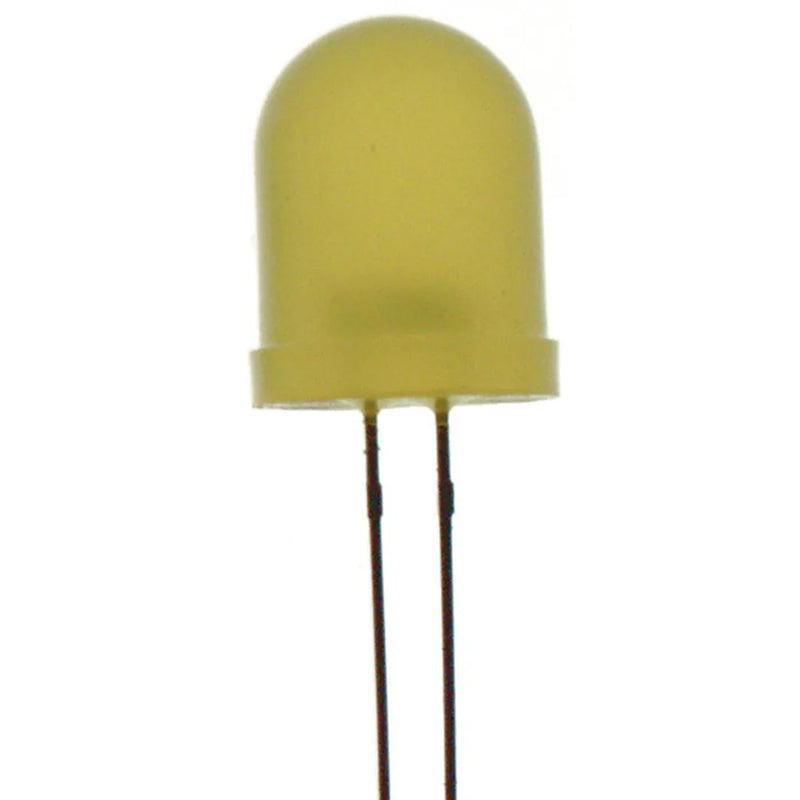

Yellow 3mm LED 30mcd Round Diffused
SKU ZD0110
Original price
$0.22
-
Original price
$0.22
Original price
$0.22
$0.95
$0.95
-
$0.95
Current price
$0.95
LED
Yellow 3mm LED 30mCd Round Diffused
Product Dimensions
| Diameter | 3mm |
Packaged Dimensions
| Packaged Volume | 0l |
| Packaged Weight | 0.001kg |
| Packaged Length | 0.3cm |
| Packaged Width | 0.3cm |
| Packaged Height | 3.5cm |
LED Components
| Light Wavelength | 585nm |
| LED Type | 3mm Standard LED |
| Viewing Angle | 50° |
| Intensity | 10mcd |
| Vf (typ) - Typical Forward Voltage | 2.1V |
| If (typ) - Typical Forward Current | 20mA |
| Resistor for 5VDC | 150Ω |
| If (max) - Maximum Forward Current | 20mA |
| Resistor for 9VDC | 360Ω |
| Resistor for 12VDC | 510Ω |
| Illumination Type | Single Colour |
| Light Colour | Yellow |
| Lens Type | Diffused |
Product Availability
| Availability | Stocked item |
