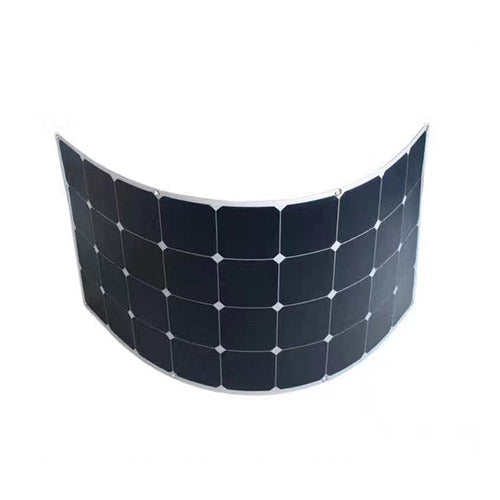

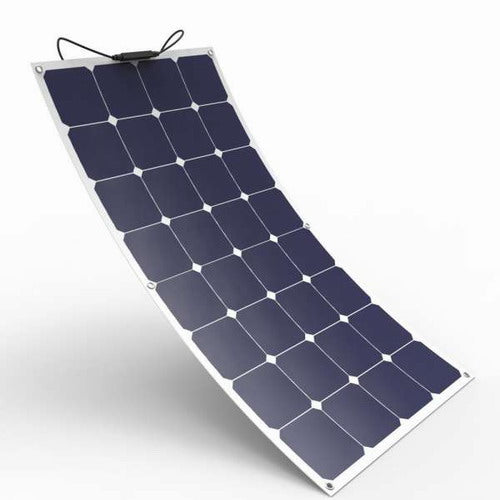

FS Flexible Solar Panel 100w with MC4 Connectors
by FSun
SKU
Original price
$199.00
-
Original price
$199.00
Original price
$199.00
$199.00
-
$199.00
Current price
$199.00
- High efficiency Sunpower solar cell for better output

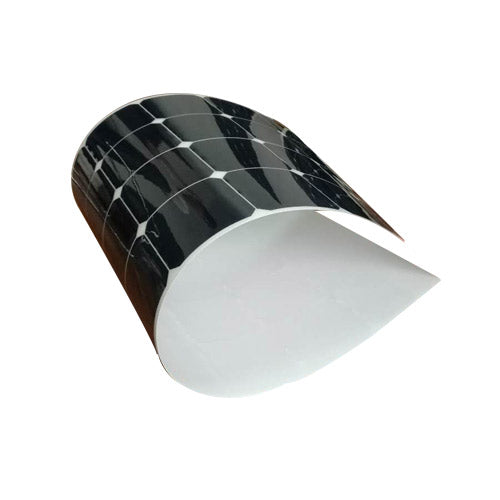

- Semi flexible solar panel can be bending angle up to 30 degrees
- Light weight for easy taking away
- Stainless grommets on the corners for easy installation
- Various applications such as: RV/Boat/Marine or Golf cart, motor home
-
Specifications
| Electrical Characteristics | |
| Model | SS-S100WP |
| Maximum Power at STC (Pmax) | 100 W |
| Optimum Operating Voltage (Vmp) | 17.60 V |
| Optimum Operating Current (Imp) | 5.83A |
| Open - Circuit Voltage (Voc) | 21.10V |
| Short - Circuit Current (Isc) | 6.11A |
| Cell Efficiency | 22.00% |
| Operating Module Temperature | -20 °C to +65 °C |
| Maximum System Voltage | 1000 V DC (IEC) / 600 V DC (UL) |
| Maximum Series Fuse Rating | 20 A |
| Power Tolerance | ±5 % |
| STC: lrradiance 1000 W/m2, module temperature 25 °C, AM=1.5; | |
| Mechanical Characteristics | |
| Solar Cell | Sunpower |
| No. of Cells | 32 (4 × 8) |
| Dimensions | 1060 × 530× 2.8mm |
| Weight | 1.8 kgs |
| Front Glass PET | Polish PET & ETFE |
| Frame | N/A |
| Junction Box | IP67 rated |
| Output Cables | 4.0 mm2,symmetical lengths(-)1000mm and (+)1000mm |
| Connectors | SOLAR MC4 integrated twist locking connectors |
