Low Cost Digital Multimeter (DMM)
Original price
$26.33
-
Original price
$26.33
Original price
$26.33
$31.95
$31.95
-
$31.95
Current price
$31.95
| /
Batteries Included

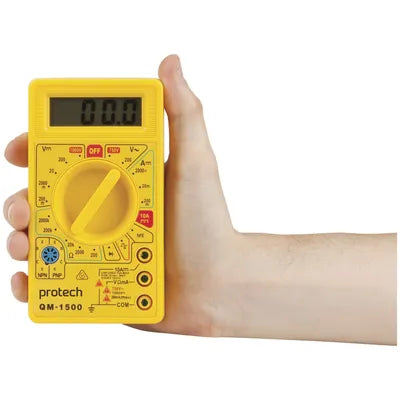

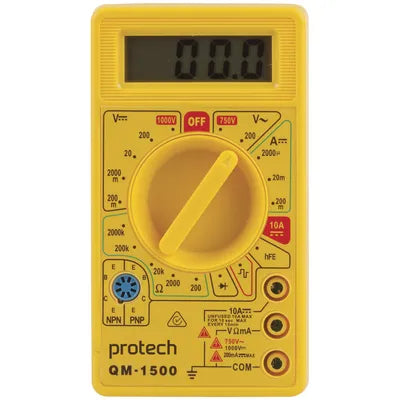

This is the ideal first multimeter or a handy spare meter for your car or toolbox. Measures essential test ranges and includes plug-in 4mm probes plus transistor tester.
• Ideal First Meter
• Compact Size
• Overload Protected
Measures Current DC
DC Current Accuracy
| 2,000uA, 20mA, 200mA ±2.0% ±2 digits, 10A ±2.5% ±2 digits |
DC Current Ranges
| 2µA, 2mA, 20mA, 200A, 10A |
Measures Voltage AC
AC Voltage Accuracy
| ±1.2 ±10 Digits% |
AC Voltage Ranges
| 200V, 750V |
Measures Voltage DC
DC Voltage Accuracy
| 200V ±0.5 ±2 Digits, 200V ±0.8 ±2 Digits |
DC Voltage Ranges
| 200mV, 2V, 20V, 200V, 1V |
Meter Safety Rating
Safety Rating Cat
| Cat II |
Safety Rating Max Volt
| 500V |
Measures Resistance
Resistance Accuracy
| 200kΩ ±0.8 ±2 Digits%, 200kΩ ±1 ±2 Digits% |
Resistance Ranges
| 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ |
Digital Multi-Meter
Count Maximum Reading
| 1 count |
Meter Probes
Connection to meter
| Shrouded 4mm Banana Plug |
Probe Type
| Basic Meter Probes |
Meter
Casing
| Plastic |
Input Protection Fuse
| 500mA |
Meter Input Impedence
| 1MΩ |
Measurement Range Count
| 19 count |
Special Features
| Pocket Sized |
Power from disposable battery
Size / Shape
| 9V |
Battery quantity
| 1pc |
Compartment location
| Internal / In-built |
How is battery compartment kept closed
| Clip and Screw |
Product Dimensions
Depth
| 23mm |
Width
| 68mm |
Height
| 125mm |
Weight
| 150g |
Meter Display
Digits Displayed
| 3.5digit |
Display Type
| LCD |
Display Backlight
| Not Backlit |
Display Height
| 30mm |
Display Width
| 100mm |
Product Availability
Availability
| Stocked item |
Button Cell information
Packaged Dimensions
Packaged Volume
| 0.79411l |
Packaged Weight
| 0.145kg |
Packaged Length
| 18.8cm |
Packaged Width
| 12.8cm |
Packaged Height
| 3.3cm |
Warranty: 9999 Months
Special terms or exclusions: Test leads excluded
